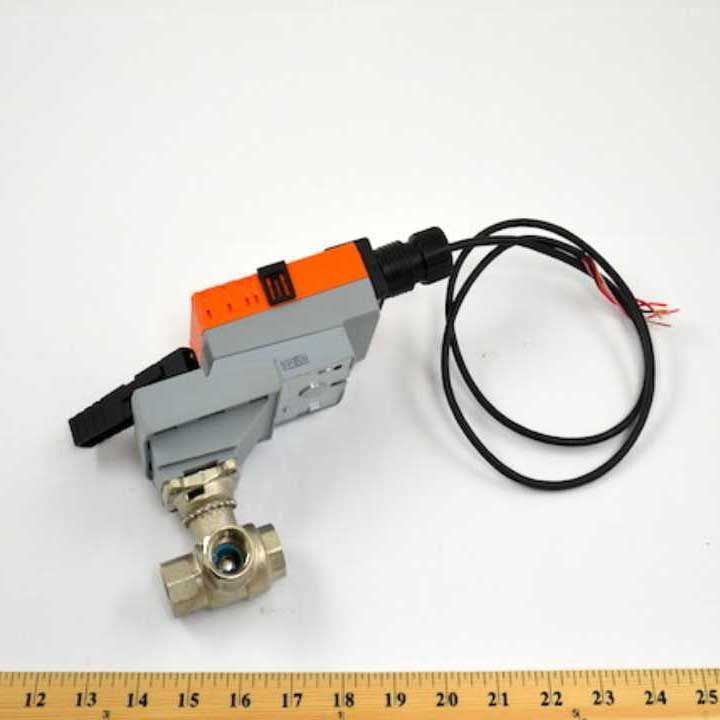

Belimo B313+LRB24-MFT Characterized Control Valve 24V Non-Spring Return Programmable

Product Description

The Belimo B313+LRB24-MFT is a characterized control valve designed to provide precision control in HVAC systems. This valve operates at 24V and is equipped with a non-spring return actuator. It is programmable, making it versatile for various applications.

• 3-way characterized control valve
• Stainless steel trim for durability
• Programmable actuator

Product Highlights

This Belimo control valve is perfect for regulating chilled or hot water in HVAC systems. Its non-spring return actuator ensures stability and reliability in operation.

Product Information

Standard Information

• Brand: Belimo
• MPN: B313+LRB24-MFT
• Type: Characterized Control Valve
• Voltage: 24V

Technical Specifications

• Valve Type: 3-way
• Cv: 4.7
• Trim: Stainless steel
• Fluid: Chilled or hot water up to 60% glycol
• Valve Size: 0.5 inches (15 mm)
• Actuator Type: Non fail-safe
• Control Type: MFT/Programmable
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Manual Override: External push button
• Power Consumption (Holding): 1.2 W
• Power Consumption (Running): 2.5 W
• Running Time (Motor): 150 s per 90 degrees
• End Fitting: Internal thread
