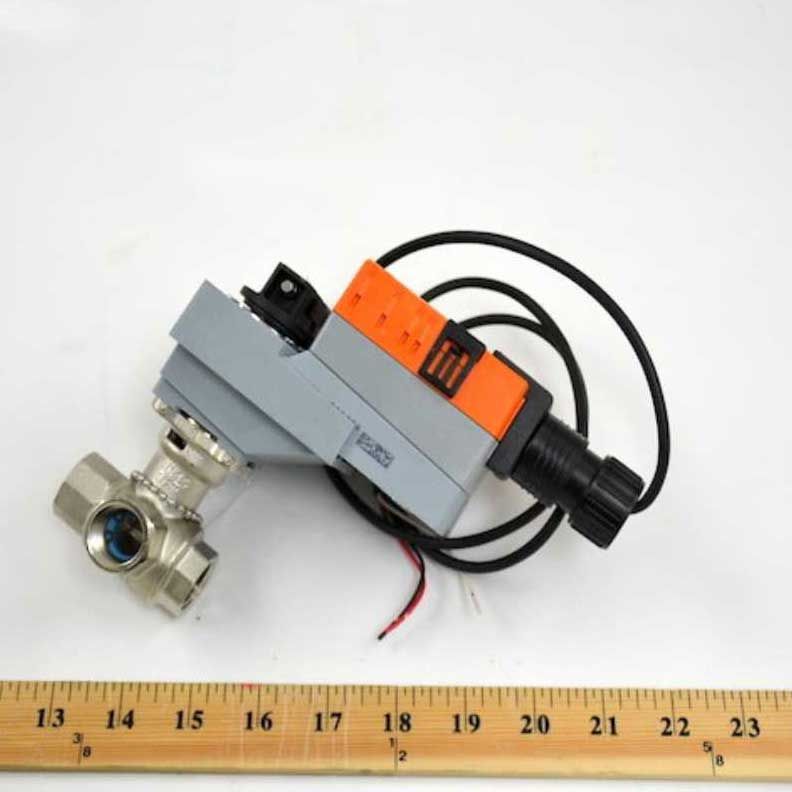

Belimo B313+LRB24-3 Valve Assembly 24V

Product Description

The Belimo B313+LRB24-3 valve assembly is designed for use in HVAC systems. This valve is compatible with hydronic systems with variable or constant flow.

• 1/2 inch, 3-way valve
• Non-spring return
• 4.7 Cv

Product Highlights

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. It is also suitable for unit ventilators, VAV box reheat coils, and bypass loops.

Product Information

Standard Information

• Brand: Belimo
• MPN: B313+LRB24-3
• Type: Valve Assembly

Technical Specifications

• Valve Type: CCV
• Valve Size: 0.5 inches
• Cv: 4.7
• Actuator Type: Non fail-safe
• Voltage: AC/DC 24V
• Control Type: Floating/3-point
• Angle of Rotation: 90 degrees
• Trim: Stainless steel
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Power Consumption (Running): 1.5 W
• Power Consumption (Holding): 0.2 W
• Running Time (Motor): 90s / 90 degrees
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Pressure Independent: No
• Manual Override: External push button
• Electrical Connection: cable
• Controllable Flow Range: 75%
