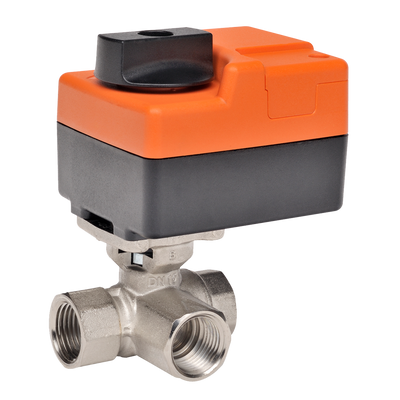

Belimo B313B+TR24-SR | CCV | 0.5 | 3 Way | 4.7 Cv | w/ Non-Spg | 24V | 2-10V

Product Description

Belimo B313B+TR24-SR is a three-way valve designed for use in air handling units and fan coil units. It is optimal for heating or cooling coils and is suited for hydronic systems with variable or constant flow. This valve sees common use in unit ventilators, VAV box reheat coils, and bypass loops.

• 3-way configuration for versatile applications.
• Operates in chilled or hot water systems.
• Integrated with a non fail-safe actuator.

Product Highlights

The valve controls flow in heating and cooling applications efficiently.

Product Information

Standard Information

• Brand: Belimo
• MPN: B313B+TR24-SR

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 4.7
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: 0.5 inches
• Actuator Type: Non fail-safe
• Control Type: DC 2-10 V
• Degree of Protection: IP40 NEMA 1
• Electrical Connection: Cable
• Manual Override: Push down handle
• Power Consumption (Running): 0.5 W
• Running Time (Motor): 90 seconds / 90 degrees
• Voltage AC/DC: 24 V
