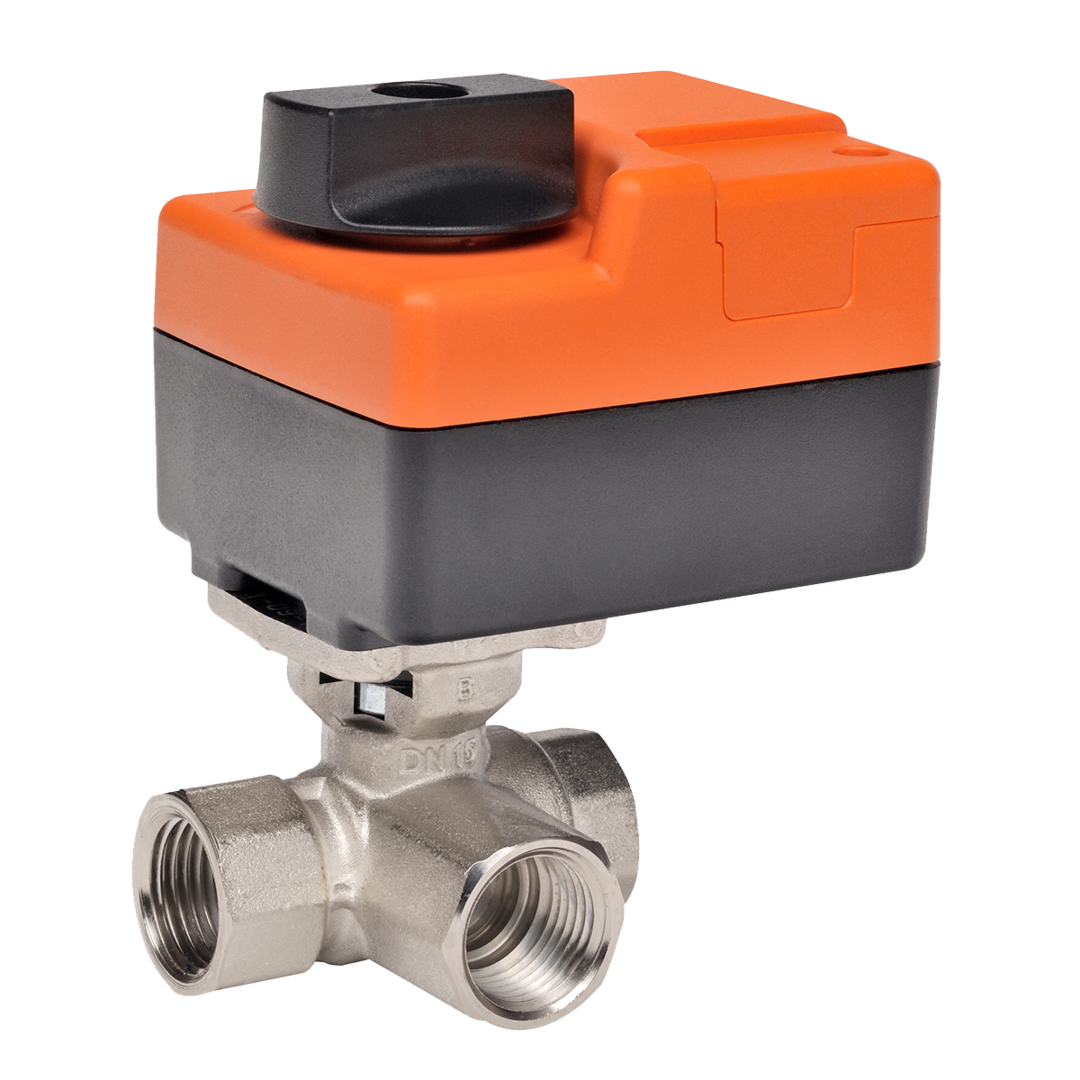

Belimo B313B+TR24-3 US CCV assembly 3 way 24 VAC 1/2 in. NPT

Product Description

The BELIMO B313B+TR24-3 US is a Characterized Control Valve featuring a forged brass, nickel plated brass body, chrome plated brass ball, and nickel plated brass stem. This 1/2 inch NPT valve includes an On/Off, Floating Point, Non-Spring Return actuator operating at 24 VAC. It is suitable for hydronic systems with variable or constant flow, commonly used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils.

• Typically used in air handling units on heating or cooling coils and fan coil unit heating or cooling coils.
• Suitable for use in hydronic systems with variable or constant flow.
• Ball valve design provides self-cleaning and zero leakage.

Product Highlights

Rated for water temperatures up to 250 F.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B313B+TR24-3 US

Technical Specifications

• Enclosure Rating: NEMA Type 1, IP40
• Fluid Compatibility: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 1 W Running
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-Port Equal Percentage, B-Port Modified Linear For Constant Flow
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Plenum Rated Cable
• Angle of Rotation: 90
• Cv Rating: 4.7
• End Fitting: NPT
• Valve Pattern: 3-way
• Pressure Independent: NO
• Trim Material: Forged Brass, Nickel Plated Brass Body, Chrome Plated Brass Ball, Nickel Plated Brass Stem
• Valve Size: 1/2 in.
• Actuator Type: Non-Spring Return
• Control Type: Floating/3-point
• Manual Override: Push down handle
• Running Time: 90s
• Input Voltage: 24 VAC
• Valve Type: Regular
