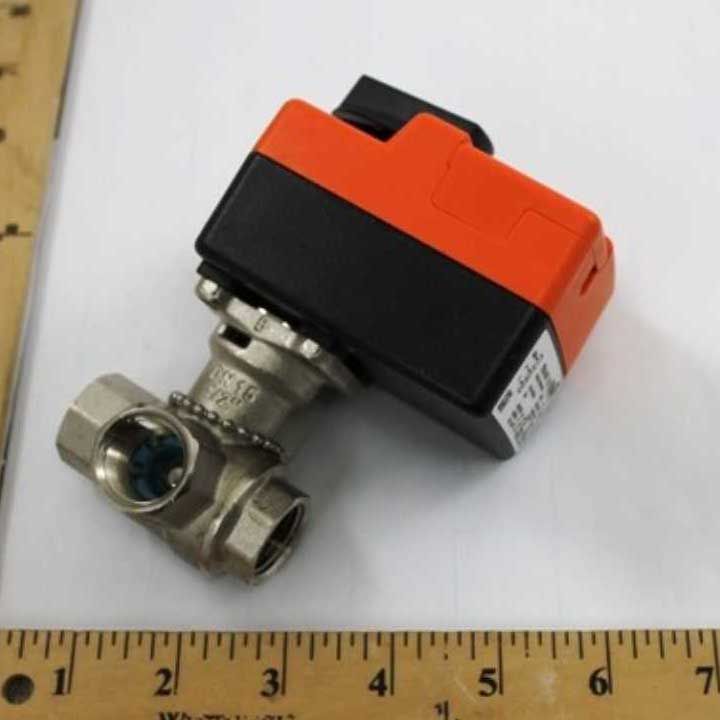

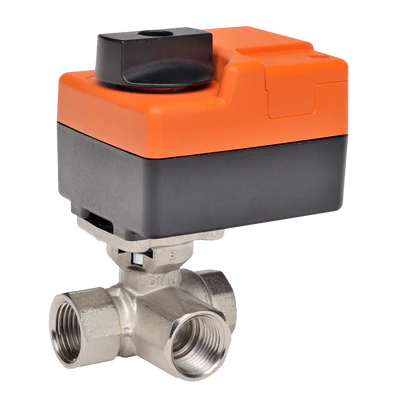

Belimo B313+TR24-SR-T CCV 3 Way Valve with Non-Spring 24V Actuator

Product Description

The Belimo B313+TR24-SR-T is a high-performance 3-way CCV ball valve designed for controlling the flow of chilled or hot water in HVAC systems. Manufactured by leading control valve technology provider, Belimo, this valve ensures efficient and reliable operation.

• Designed for easy integration in various systems.
• Features a robust stainless steel trim.
• Equipped with a non-fail-safe actuator and manual override.

Product Highlights

This control valve offers a precise flow rate of 4.7 Cv with a compact design ideal for tight installations. Its non-spring return actuator provides reliable performance at a voltage of 24V AC/DC, making it suitable for a wide range of applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B313+TR24-SR-T

Technical Specifications

• Valve Size: 0.5 inches
• Control Type: DC 2 to 10 V
• Pattern: 3-way
• Fluid: Chilled or hot water up to 60% glycol
• Pressure Independent: No
• Angle of Rotation: 90 degrees
• Power Consumption (Running): 0.5 W
• Manual Override: Push down handle
