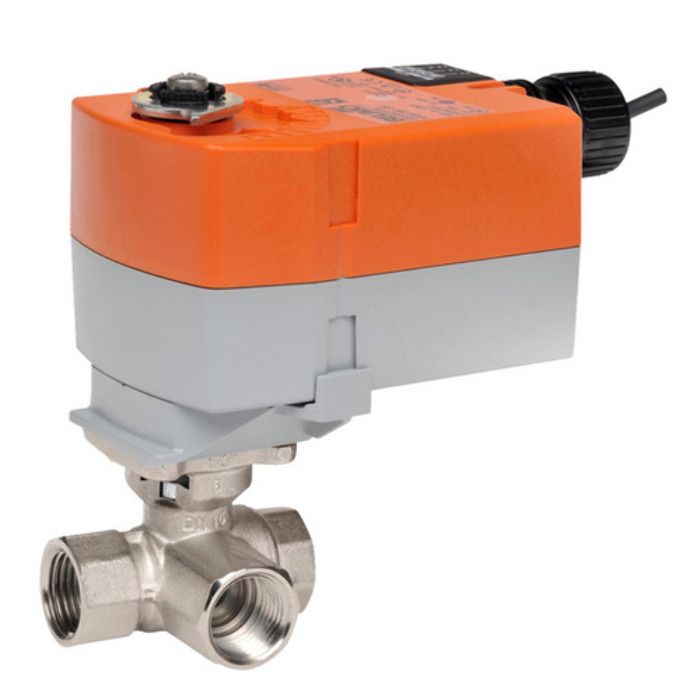

Belimo B313+TFRX24-MFT CCV Assembly 3 Way 1/2 in NPT 4.7 Cv

Product Description

The Belimo B313+TFRX24-MFT is a characteristically designed control valve that is essential for various HVAC systems. This product operates efficiently in air handling units and fan coil unit heating or cooling coils. The valve is compatible with hydronic systems for both variable and constant flow applications.

• Ball valve design ensures zero leakage.
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.
• Equipped with MFT functionality for enhanced performance.

Product Highlights

This valve is critical for maintaining optimal fluid flow in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• Minimum Order Quantity: 1

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: Chilled, hot water, up to sixty percent glycol
• Power Consumption: 2.5 W running, 1 W holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-port equal percentage, B-port modified for constant common port flow
• Operating Conditions: -22°F to 122°F (-30°C to 50°C)
• Electrical Connection: 3 ft. 10 ft. or 16 ft. 18 GA appliance or plenum cables, with or without 1/2 in. conduit connector
• Cv: 4.7
