Belimo B313+LF24-SR-S | CCV | 0.5 | 3 Way | 4.7 Cv | w/ Spg Rtn | 24V | 2-10V | SW | Belimo

Product Description

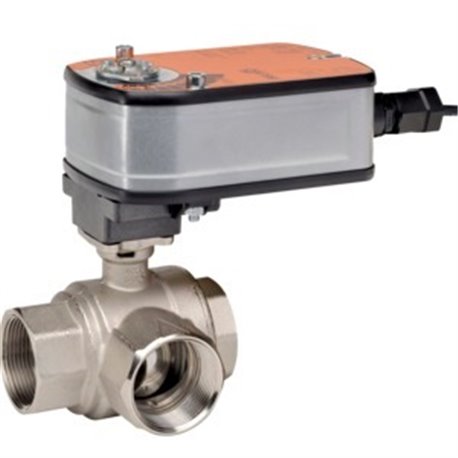

The Belimo B313+LF24-SR-S is a three-way valve designed for controlling chilled or hot water in HVAC systems. This compact valve operates using a spring-return actuator and is rated for 24 volts.

• Valve Size: 0.5 inches
• Flow Capacity: 4.7 Cv
• Configuration: 3-way with internal threads

Product Highlights

This valve is suitable for use in various heating and cooling applications. Its robust stainless steel trim ensures durability.

Product Information

Standard Information

• Brand: Belimo
• Type: 3-way valve

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 4.7
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 0.5 inches (15mm)
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds for 90 degrees
• Voltage AC/DC: AC/DC 24 V
