Belimo B313+LF24 | CCV | 0.5 | 3 Way | 4.7 Cv | w/ Spg Rtn | 24V | On/Off

Product Description

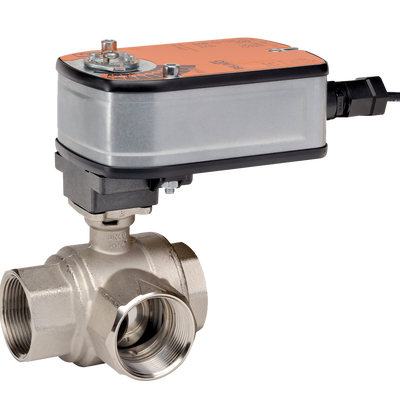

The Belimo B313+LF24 is a small electric valve actuator designed for controlling water flow in HVAC systems. It operates on twenty-four volts and is suitable for both chilled and hot water applications. The actuator features an internal-threaded valve with a capacity of four-point-seven Cv, making it an efficient choice for various medium flow scenarios.

• Actuator type: Spring return
• Angle of rotation: Ninety degrees
• Voltage: AC/DC 24V

Product Highlights

This actuator is ideal for use in both commercial and residential HVAC systems, providing reliable operation with quick response times and minimal maintenance needs.

Product Information

Standard Information

• Brand: Belimo
• MPN: B313+LF24

Technical Specifications

• Valve Size: 0.5 [15]
• Fluid: Chilled or hot water up to sixty percent glycol
• Pattern: 3-way
• Trim: Stainless steel
• Pressure Independent: NO
• Degree of Protection: IP54 NEMA2
• Running Time (Fail-safe): Less than twenty-five seconds
• Running Time (Motor): Seventy-five seconds for ninety degrees
