Belimo B313 CCV 3 Way 1/2 in NPT 4.7 Cv

Product Description

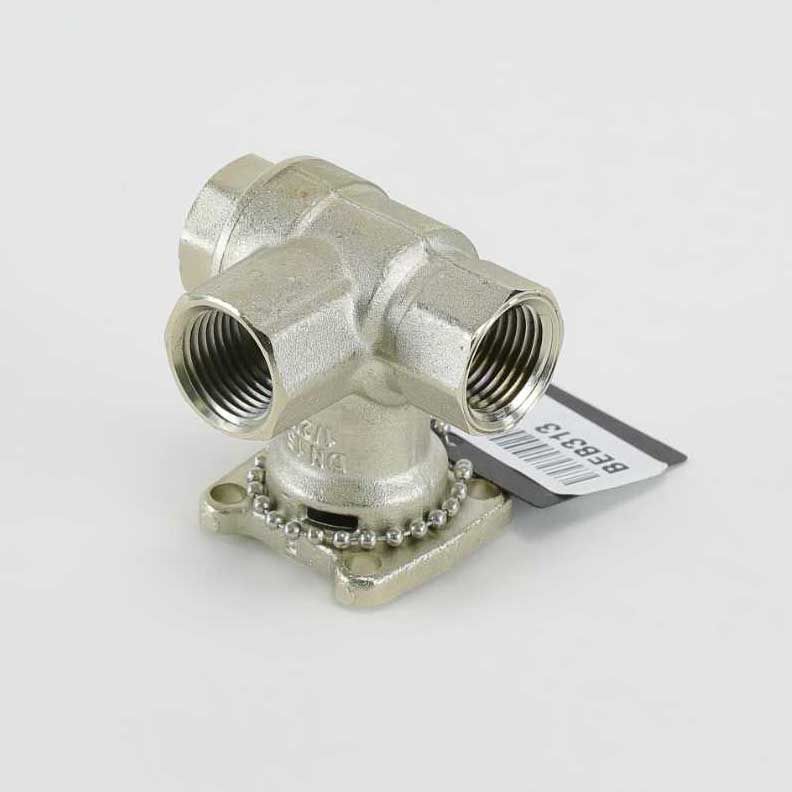

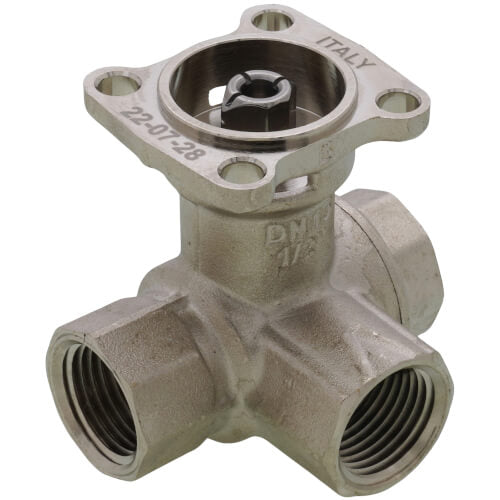

The Belimo B313 is a characterized control valve designed for reliable performance in HVAC applications. This 3-way valve features a size of one-half inch NPT and a flow capacity of 4.7 Cv. It is made with a forged brass body coated in nickel and has a stainless steel ball and stem for enhanced durability.

• Used for efficient flow control in heating and cooling systems.
• Operates effectively in hydronic systems with variable or constant flow.
• Rated for water temperatures up to 250°F, making it suitable for a variety of applications.

Product Highlights

Ideal for air handling units, fan coils, and VAV systems. The valve offers self-cleaning properties and zero leakage.

Product Information

Standard Information

• Brand: Belimo
• MPN: B313
• Part Number: B313

Technical Specifications

• Close-Off Pressure: 200 psi
• Flow Characteristic: A-Port Equal Percentage, B-Port Modified for Constant Common Port Flow
• Operating Conditions: 0°F to 250°F (-18°C to 120°C)
• Fluid Types: Chilled and hot water with up to 60% glycol
• Valve Size: 0.5 inches (15 mm)
• Trim Material: Stainless steel
• End Fitting: Internal thread
• Weight: 0.71 lbs
