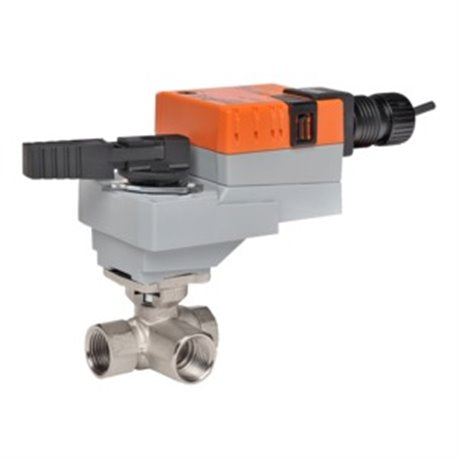

Belimo B312B+LRB120-3 CCV Assembly, 3 Way, 1/2 in. NPT, 3 Cv

Product Description

The Belimo B312B+LRB120-3 is a characterized control valve. This model features a 3-way design with an internal thread. It is suitable for chilled or hot water applications. It operates on a voltage range of one hundred to two hundred forty volts AC. The valve has a flow capacity of three Cv.

• Valve size: 0.5 inches
• Angle of rotation: 90 degrees
• Actuator type: Non fail-safe

Product Highlights

This valve is built for efficiency in HVAC systems, ensuring proper flow control. It is suitable for various environments and meets industry standards.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B312B+LRB120-3

Technical Specifications

• Valve Size: 0.5 inches
• Cv: 3
• Fluid: Chilled or hot water up to 60% glycol
• Control Type: Floating/3-point
• Degree of Protection: IP54 NEMA2 UL Enclosure Type 2
• Voltage AC/DC: AC 100...240 V
• Manual Override: External push button
• Running Time (Motor): 90 seconds per 90 degrees
