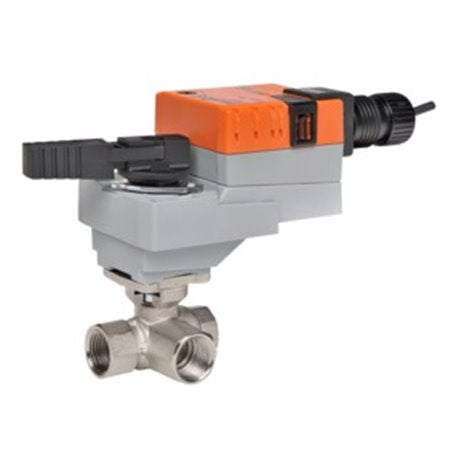

Belimo B312+LRB120-3 CCV Assembly, 3 Way, 1/2 in. NPT, 3 Cv

Product Description

The Belimo B312+LRB120-3 is a characterized control valve designed for efficient flow control in HVAC systems. It features a nickel-plated brass body and a stainless steel ball and stem construction. This valve supports a voltage range of one hundred to two hundred forty volts and utilizes a direct coupled actuator for reliable performance.

• Three-way valve configuration
• Direct coupled actuator, non-fail safe
• Compatible with chilled or hot water up to sixty percent glycol

Product Highlights

The Belimo B312+LRB120-3 is suitable for a variety of applications, particularly in heating and cooling systems where precise fluid control is required.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B312+LRB120-3

Technical Specifications

• Cv: 3
• Valve Size: 0.5 inches
• Angle of Rotation: 90 degrees
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Control Type: Floating/3-point
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Manual Override: External push button
• Voltage AC/DC: AC 100...240V
