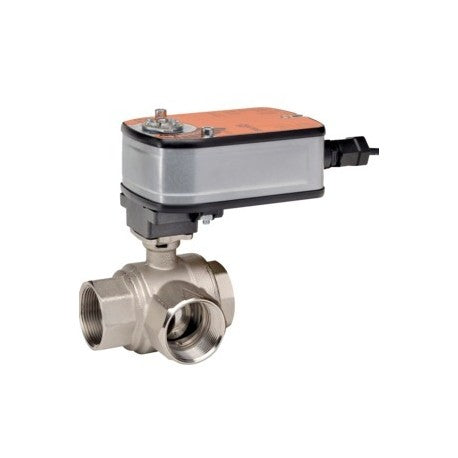

Belimo B312+LF24-MFT | CCV | 0.5 | 3 Way | 3 Cv | w/ Spg Rtn | 24V | MFT

Product Description

The Belimo B312+LF24-MFT is a reliable control valve designed for hydronic systems. Its component specifications include a valve size of half an inch, featuring a three-way design and a Cv rating of three. It operates with a spring return actuator and is powered by twenty-four volts. This valve is essential in air handling units, and fan coil applications. The B312+LF24-MFT can also be applied in unit ventilators and VAV box re-heat coils, making it versatile for various systems.

• Valve Size: 0.5 inches
• Three-way pattern
• Spring return actuator for enhanced functionality

Product Highlights

Designed for precise control in heating and cooling systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B312+LF24-MFT

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 3
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 0.5 inches
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
