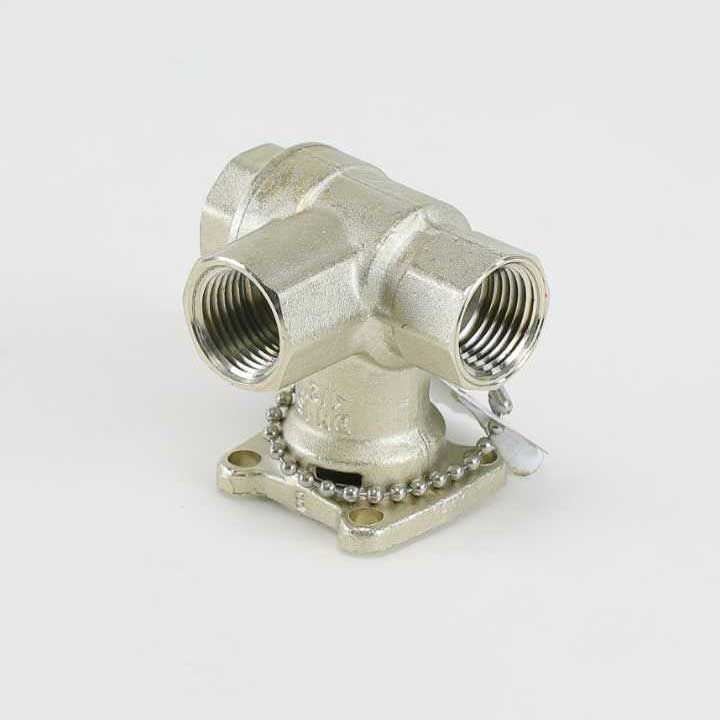

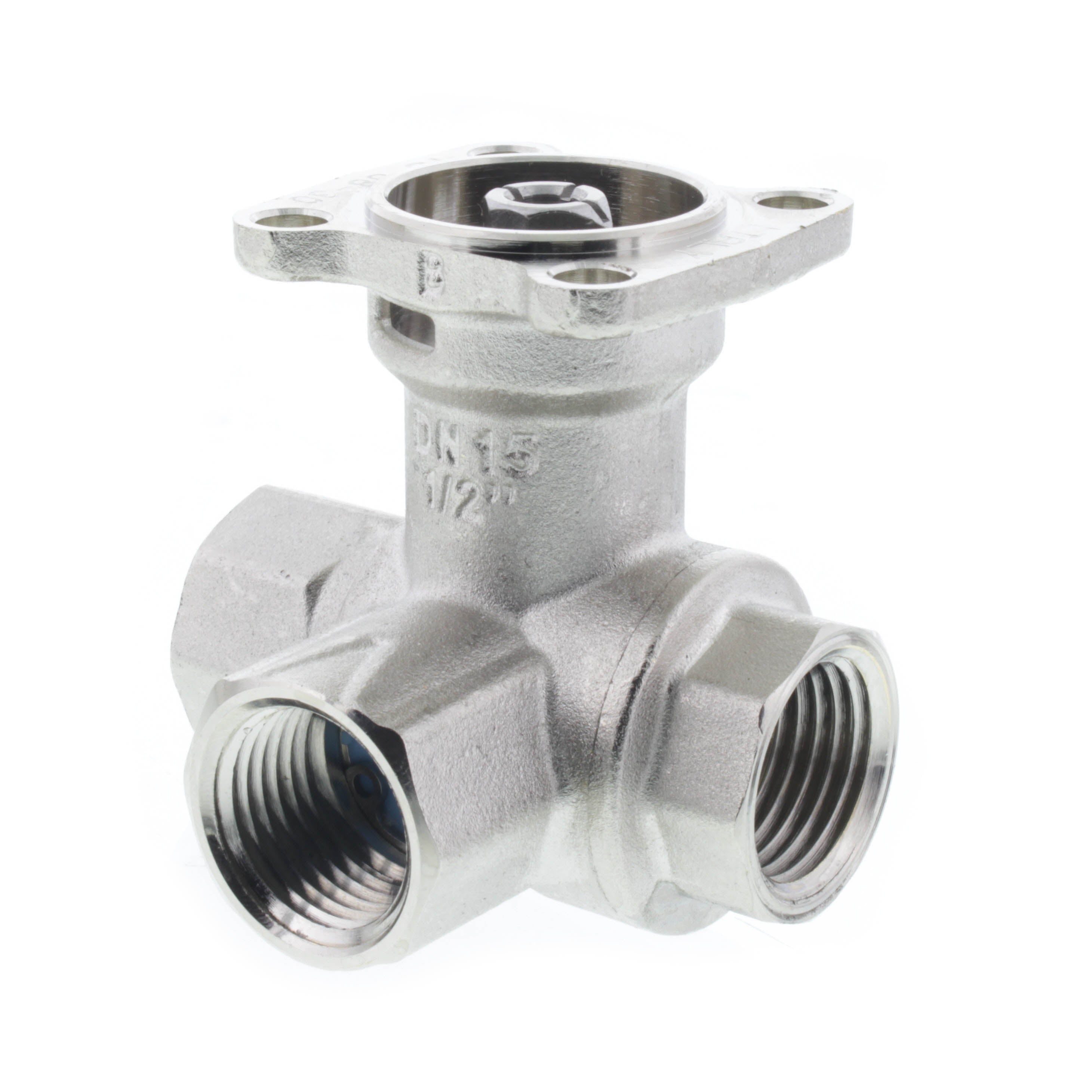

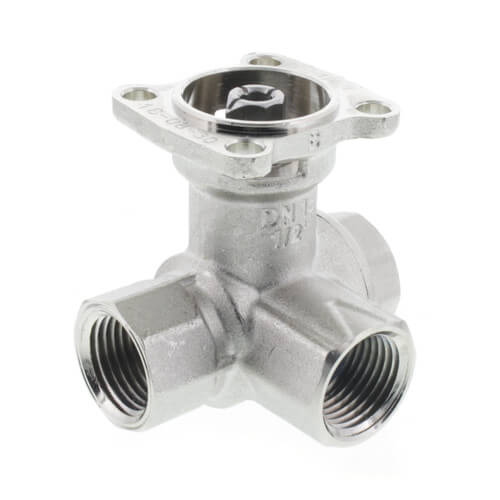

Belimo B312 CCV 3 Way 1/2 NPT 3 Cv

Product Description

The Belimo B312 is a characterized control valve designed for HVAC systems. It features a three-way configuration with a half-inch NPT connection and a Cv of three. This valve is suitable for use in air handling units and fan coil units for both heating and cooling applications.

• Designed for variable and constant flow systems.
• Constructed from forged brass with a nickel-plated finish.
• Stainless steel ball and stem for durability.

Product Highlights

The Belimo B312 is ideal for regulating the flow of chilled or hot water, accommodating systems with up to sixty percent glycol. Its design ensures self-cleaning and zero leakage, providing reliable performance in various HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B312

Technical Specifications

• Close-Off Pressure: 200 psi
• Operating Conditions: Zero Fahrenheit to 250 Fahrenheit
• Flow Characteristic: A-Port equal percentage, B-Port modified for constant common port flow
• Fluid Compatibility: Chilled or hot water up to sixty percent glycol
• Valve Size: Half inch NPT
• Body Material: Forged brass
• Trim Material: Stainless steel
• Application: Air handling units, fan coil units, unit ventilators
