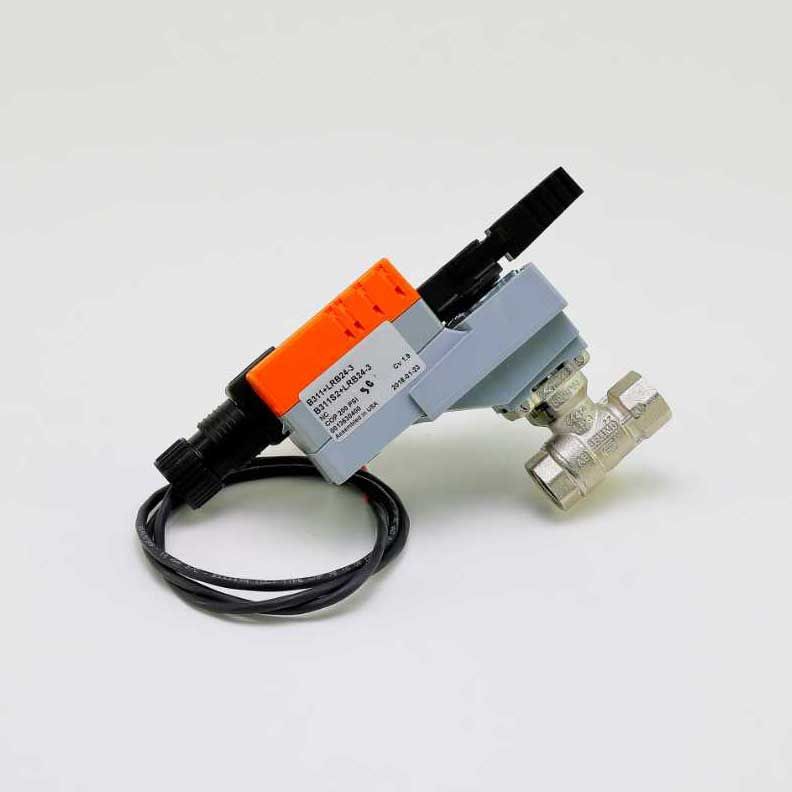

Belimo B311+LRB24-3 Characterized Control Valve 24V

Product Description

The Belimo B311+LRB24-3 Characterized Control Valve is ideal for various industrial control applications. This valve features non-spring return actuators and is optimized for reliable control.

• 3-way valve design
• Stainless steel trim
• 1/2 inch NPT connection

Product Highlights

This control valve is designed for efficient performance in HVAC and plumbing systems, ensuring precise control of water flow.

Product Information

Standard Information

• Brand: Belimo
• MPN: B311+LRB24-3

Technical Specifications

• Valve Size: 0.5 inches (15mm)
• Cv: 1.9
• Fluid Type: Chilled or hot water up to 60% glycol
• Trim: Stainless steel
• Pattern: 3-way
• Control Type: Floating/3-point
• Voltage: AC/DC 24V
• Angle of Rotation: 90 degrees
• Actuator Type: Non fail-safe
• End Fitting: Internal thread
• Manual Override: External push button
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: Cable
• Power Consumption (Holding): 0.2 W
• Power Consumption (Running): 1.5 W
• Running Time (Motor): 90 s / 90 degrees
• Pressure Independent: No
• Weight: 2.30 lbs
