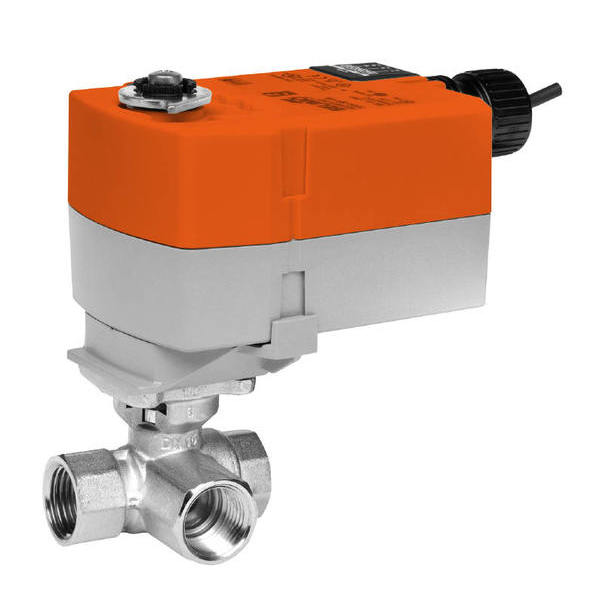

Belimo B311B+TFRB24 CCV Assembly 3 Way 1/2 in NPT 1.9 Cv

Product Description

The Belimo B311B+TFRB24 is a characteristically designed control valve with a variety of features. This assembly is a three-way valve with a size of one half inch NPT and a flow coefficient of 1.9 Cv. It is suitable for use in hydronic systems, serving heating and cooling coils in various applications.

• Designed for air handling units and fan coil units
• Self-cleaning ball valve construction
• Rated for water temperatures up to 250 degrees Fahrenheit

Product Highlights

This valve operates with on/off control and has a direct coupled actuator. It features a spring return mechanism and operates on 24 VAC/DC.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B311B+TFRB24

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: Chilled, hot water, up to 60% glycol
• Power Consumption: 2 W running, 1.3 W holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-Port equal percentage, B-Port modified linear for constant flow
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 3 ft. 18 GA appliance cable with 1/2 in. conduit connector
• Valve Size: 0.5 inches
• Angle of Rotation: 95 degrees
