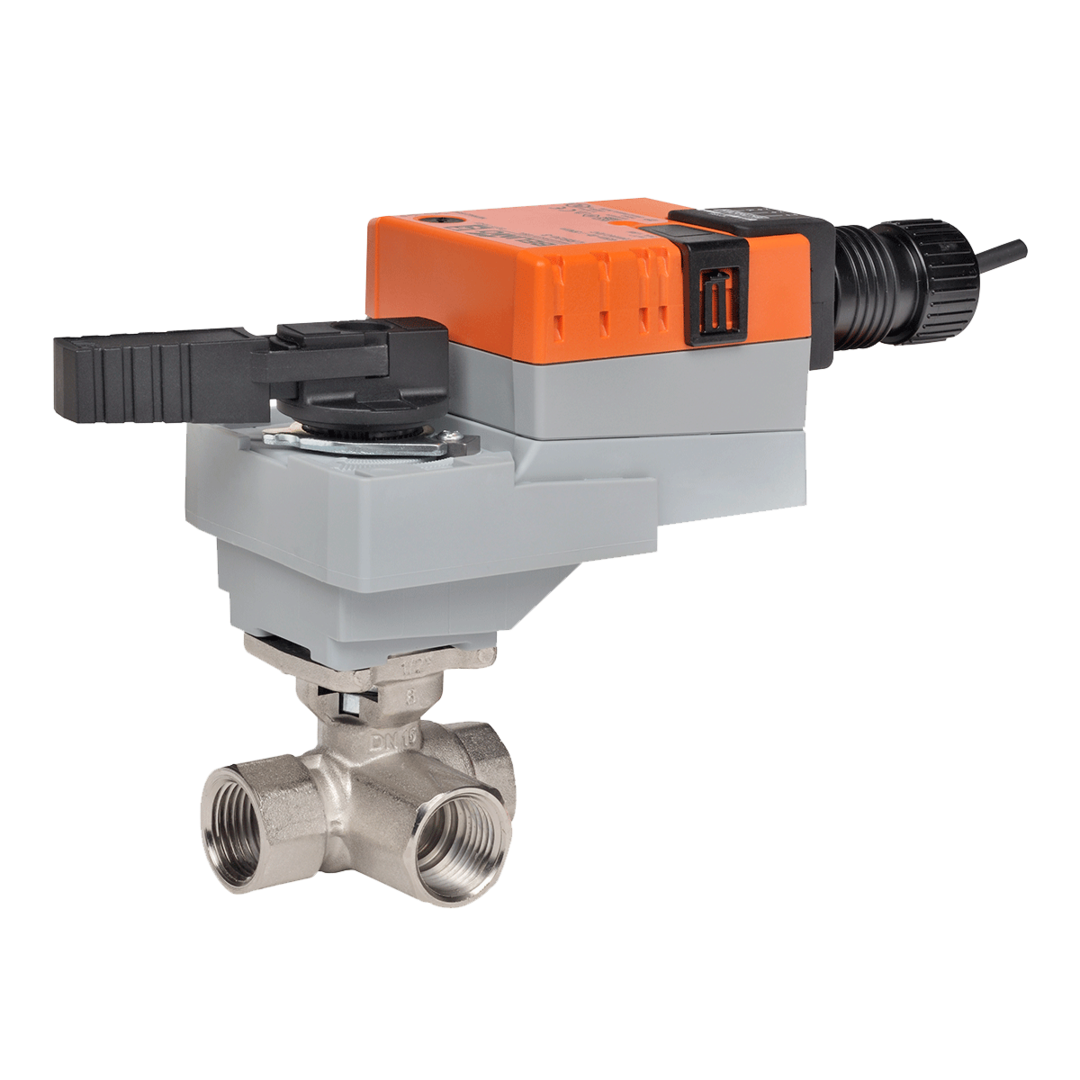

Belimo B311B+LRB120-3 CCV Assembly 3 Way 1/2 in NPT 1.9 Cv

Product Description

Belimo B311B+LRB120-3 is a characterized control valve designed for HVAC applications. This valve features a forged brass construction, ensuring durability and reliability in temperature control. It operates on voltage rated from one hundred to two hundred forty VAC, suitable for multiple control scenarios.

• Direct coupled actuator with non-fail-safe operation
• Designed for on/off and floating point control
• Chrome plated brass trim for corrosion resistance

Product Highlights

This valve is particularly effective in controlling chilled or hot water flows, making it ideal for various HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B311B+LRB120-3

Technical Specifications

• Valve Size: 0.5 inches
• Flow Coefficient (Cv): 1.9
• Angle of Rotation: 90 degrees
• Control Type: Floating/3-point
• Power Consumption: 2 W (running), 0.5 W (holding)
• Voltage AC/DC: 100 to 240 V
• Manual Override: External push button
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Enclosure Protection: IP54 NEMA 2
