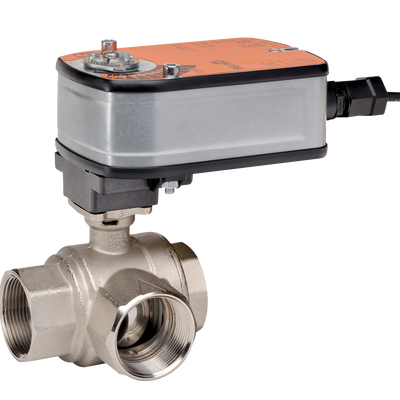

Belimo B311B+LF24-SR CCV 0.5 3 Way 1.9 Cv w/ Spg Rtn 24V 2-10V

Product Description

The Belimo B311B+LF24-SR is a control valve designed for heating and cooling systems. It features spring return technology and operates at twenty-four volts. This valve is suitable for controlling chilled or hot water with a maximum glycol concentration of sixty percent.

• 3-way pattern for versatile flow control
• Adjustable flow range
• Internal thread end fitting for easy connection

Product Highlights

This valve is ideal for commercial and residential applications where precise temperature control is essential. Its compact design allows for easy installation in tight spaces.

Product Information

Standard Information

• Brand: Belimo
• MPN: B311B+LF24-SR

Technical Specifications

• Valve Size: 0.5 inches
• Cv: 1.9
• Angle of Rotation: 90 degrees
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• End Fitting: Internal thread
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Voltage: AC/DC 24 V
• Degree of Protection: IP54 NEMA2
