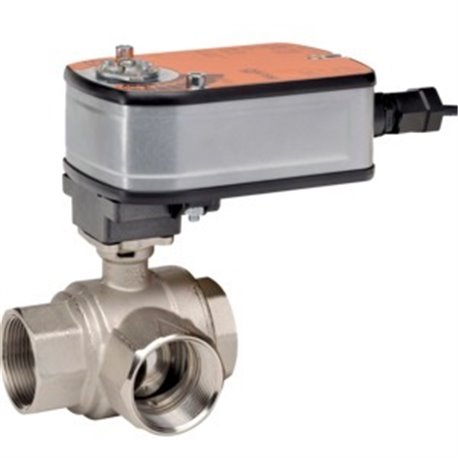

Belimo B311B+LF24-3 CCV 0.5 3 Way 1.9 Cv w/ Spg Rtn 24V Floating

Product Description

The Belimo B311B+LF24-3 is a three-way control valve that operates on twenty-four volts with a spring return actuator. It features a flow coefficient (Cv) of 1.9 and is designed for use with chilled or hot water systems that can include up to sixty percent glycol. The valve size is half inch with internal thread end fittings. This model is suitable for a variety of applications in HVAC systems.

• Three-way valve with a Cv of 1.9
• Half inch valve size suitable for multiple systems
• Spring return actuator for reliable operation

Product Highlights

This valve is engineered for efficient fluid control and reliable performance in heating and cooling applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B311B+LF24-3

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Fluid: Chilled or hot water up to 60% glycol
• Trim: Chrome plated brass
• Pressure Independent: NO
• Degree of Protection: IP54 NEMA 2
• Voltage AC/DC: AC/DC 24V
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
