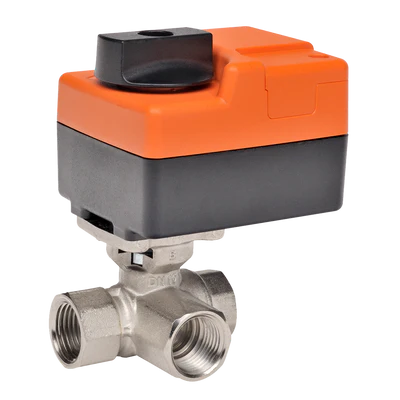

Belimo B311+TR24-SR CCV 0.5 Inch 3 Way 1.9 Cv with Non-Spring Return Actuator 24V 2-10V

Product Description

The Belimo B311+TR24-SR ball valve assembly, designed for precise control in HVAC systems, features a 3-way configuration and a stainless steel trim. This assembly includes a non-spring return actuator that operates on a 24V supply with 2-10V control signals, suitable for chilled or hot water systems up to 60% glycol. Engineered for durability and efficiency, it is an ideal choice for managing water flow in building services.

• Stainless steel trim and 0.5-inch NPT connections ensure longevity and leak-proof operation.
• Features a controllable flow range and an angle of rotation of 90 degrees for full operational control.
• Equipped with manual override and an IP40-rated actuator for reliable performance in demanding environments.

Product Highlights

This valve setup promises consistent performance and easy integration into existing systems, making it a go-to solution for HVAC professionals seeking precise fluid management.

Product Information

Standard Information

• Product type: Ball Valve Assembly
• Brand: Belimo
• Model: B311+TR24-SR

Technical Specifications

• Valve size: 0.5 inch
• Actuator type: Non fail-safe
• Control type: DC 2…10 V
• Voltage: AC/DC 24 V
• Connection: Cable
• Protection: IP40, NEMA 1
• Flow range: Controllable
• Power consumption: 0.5 W
