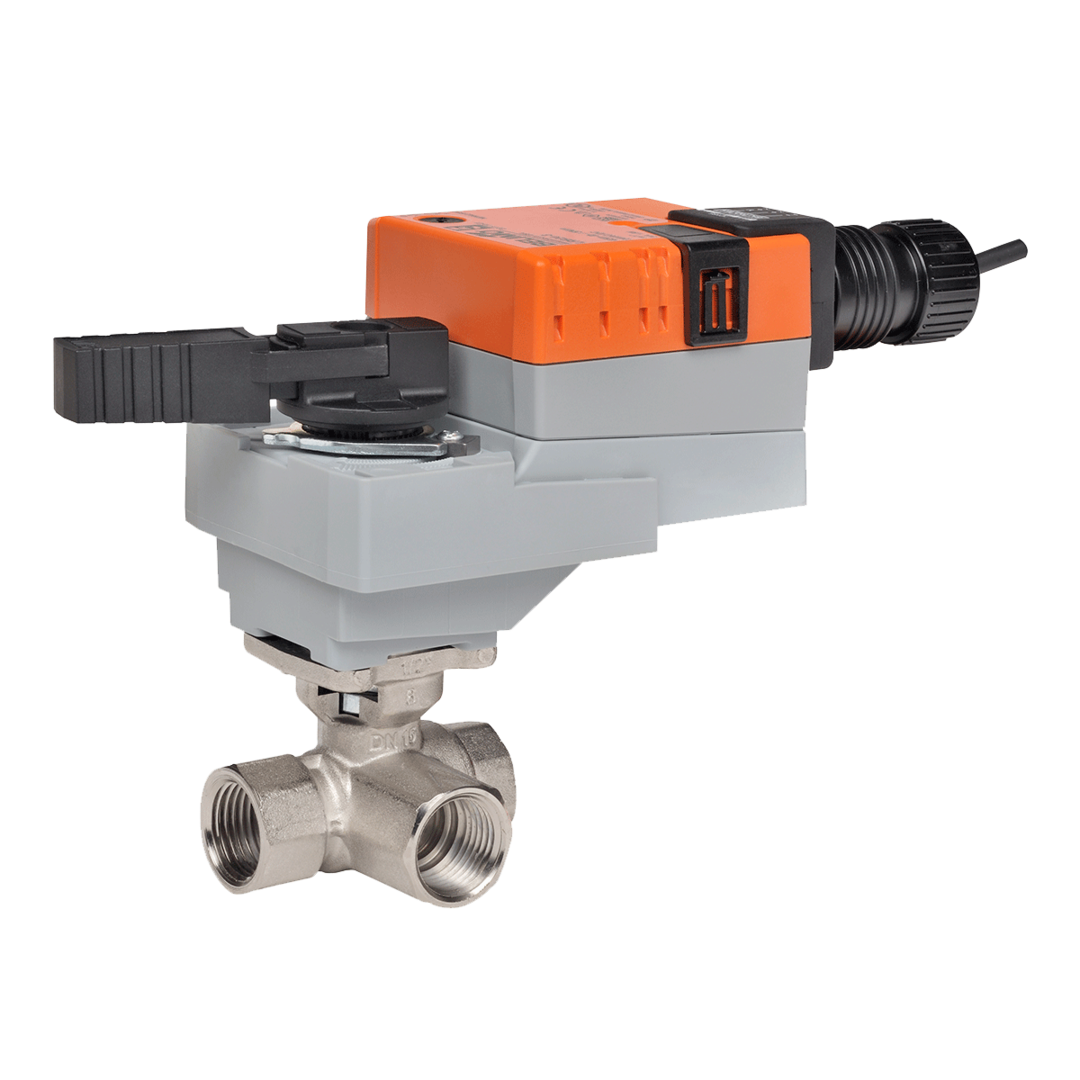

Belimo B311+LRB24-MFT CCV Assembly 3 Way 1/2 in NPT 1.9 Cv

Product Description

The Belimo B311+LRB24-MFT is a characterized control valve designed for heating, cooling, and hydronic applications. Its compact size accommodates a half-inch NPT connection and operates with a modulating actuator at an efficient power rating of twenty-four volts.

• Typically used in air handling units and fan coil systems.
• Ball valve design ensures self-cleaning and zero leakage.
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve is engineered for variable and constant flow systems, providing reliable performance in diverse environments.

Product Information

Standard Information

• Brand: Belimo
• Part #: B311+LRB24-MFT

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 2.5 W Running, 1.2 W Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-Port Equal Percentage, B-Port Modified For Constant Common Port Flow
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
• Degree of Protection: IP54 NEMA2 UL Enclosure Type 2
