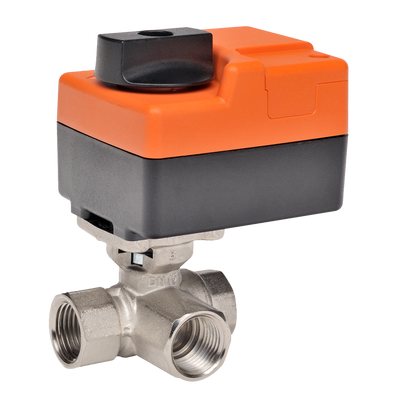

Belimo B310B+TR24-3-T | CCV | 0.5 | 3 Way | 1.2 Cv | w/ Non-Spg | 24V | Floating

Product Description

Belimo B310B+TR24-3-T is a three-way control valve designed for precise flow control in heating and cooling systems. This valve operates on 24 volts with a non-fail-safe actuator type, making it suitable for various applications in HVAC systems.

• Rated flow coefficient (Cv) of 1.2
• Constructed with chrome plated brass trim for durability
• Compatible with chilled or hot water systems up to sixty percent glycol

Product Highlights

This valve supports straightforward installation and robust performance, providing reliable flow control across multiple HVAC configurations.

Product Information

Standard Information

• Brand: Belimo
• MPN: B310B+TR24-3-T

Technical Specifications

• Valve Size: 0.5 inches (15mm)
• Pattern: 3-way
• Angle of Rotation: 90 degrees
• Fluid: Chilled or hot water up to 60% glycol
• Electrical Connection: Terminals
• Voltage AC/DC: AC 24V
• Power Consumption (Running): 1 W
• Control Type: Floating/3-point
