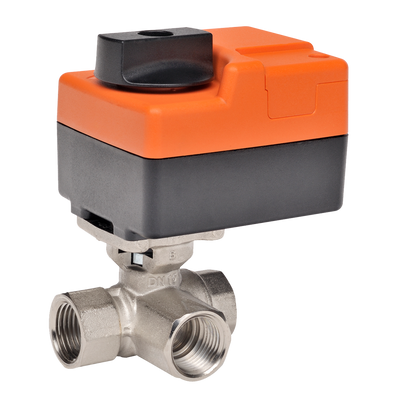

BELIMO B310B+TR24-3 CCV 0.5 inch 3 Way 1.2 Cv Non-Spring 24V Floating Actuator

Product Description

The BELIMO B310B+TR24-3 valve offers reliable control over your HVAC systems, featuring a three-way, non-spring, 24-volt floating actuator designed for efficient performance. Ideal for regulating flow in chilled or hot water systems up to 60% glycol, this valve ensures consistent operation and durability.

• Compact and efficient 0.5 inch valve size
• Enhanced durability with chrome plated brass trim
• Easy manual override with push-down handle

Product Highlights

This valve is engineered for quick installation and features a robust internal thread end fitting. Its 90-degree angle of rotation allows for precise control over fluid dynamics, contributing to optimal system efficiency.

Product Information

Standard Information

• Brand: BELIMO
• MPN: B310B+TR24-3

Technical Specifications

• Valve Type: 3-way
• Actuator Type: Non-fail-safe, floating/3-point
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Electrical Connection: Cable
• Voltage: AC 24V
• Running Time (Motor): 90 seconds
• Pressure Independent: No
• Protection Degree: IP40, NEMA 1
