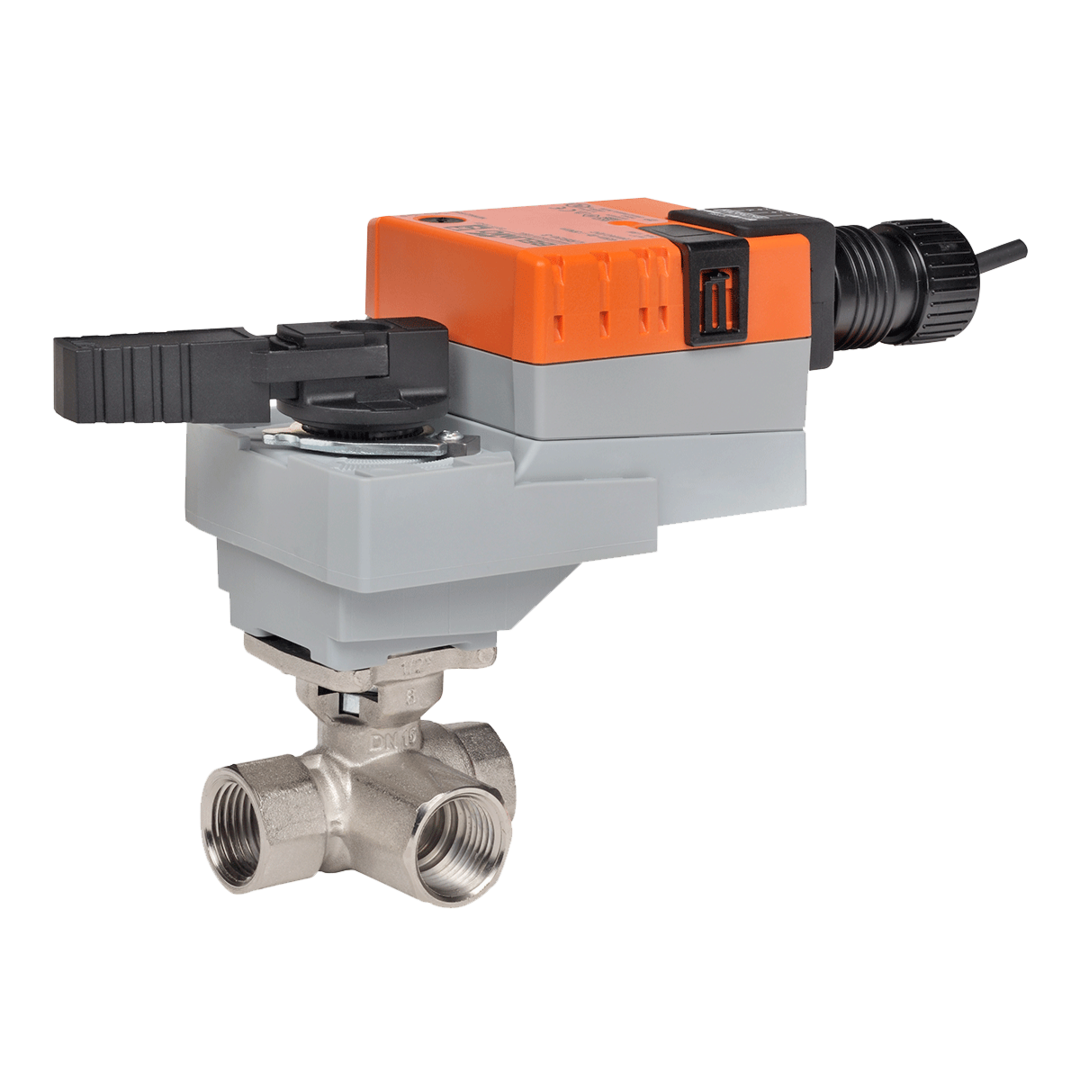

Belimo B310B+LRB120-3 CCV Assembly, 3 Way, 1/2 in NPT, 1.2 Cv

Product Description

The Belimo B310B+LRB120-3 is a characterized control valve designed for HVAC applications. This valve features a forged brass structure for durability and a nickel plated brass body enhancing corrosion resistance. It operates under direct coupled actuator principles with a voltage range of 100 to 240 VAC ensuring versatile installation options.

• 3-way configuration with internal thread end fitting for easy integration.
• Runs on a floating or 3-point control type, ideal for precise temperature management.
• Compatible with chilled or hot water systems containing up to sixty percent glycol.

Product Highlights

This product is built for effective fluid control in HVAC systems, providing reliable performance in various environmental conditions.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B310B+LRB120-3

Technical Specifications

• Valve Size: 0.5 inches (15 mm)
• Cv: 1.2
• Fluid: Chilled or hot water up to 60% glycol
• Angle of Rotation: 90 degrees
• Power Consumption (Holding): 0.5 watts
• Power Consumption (Running): 2 watts
• Degree of Protection: IP54 NEMA2 UL Enclosure Type 2
• Voltage AC/DC: AC 100 to 240 volts
