Belimo B310B+LF24-SR-S | CCV | 0.5 | 3 Way | 1.2 Cv | w/ Spg Rtn | 24V | 2-10V | SW |

Product Description

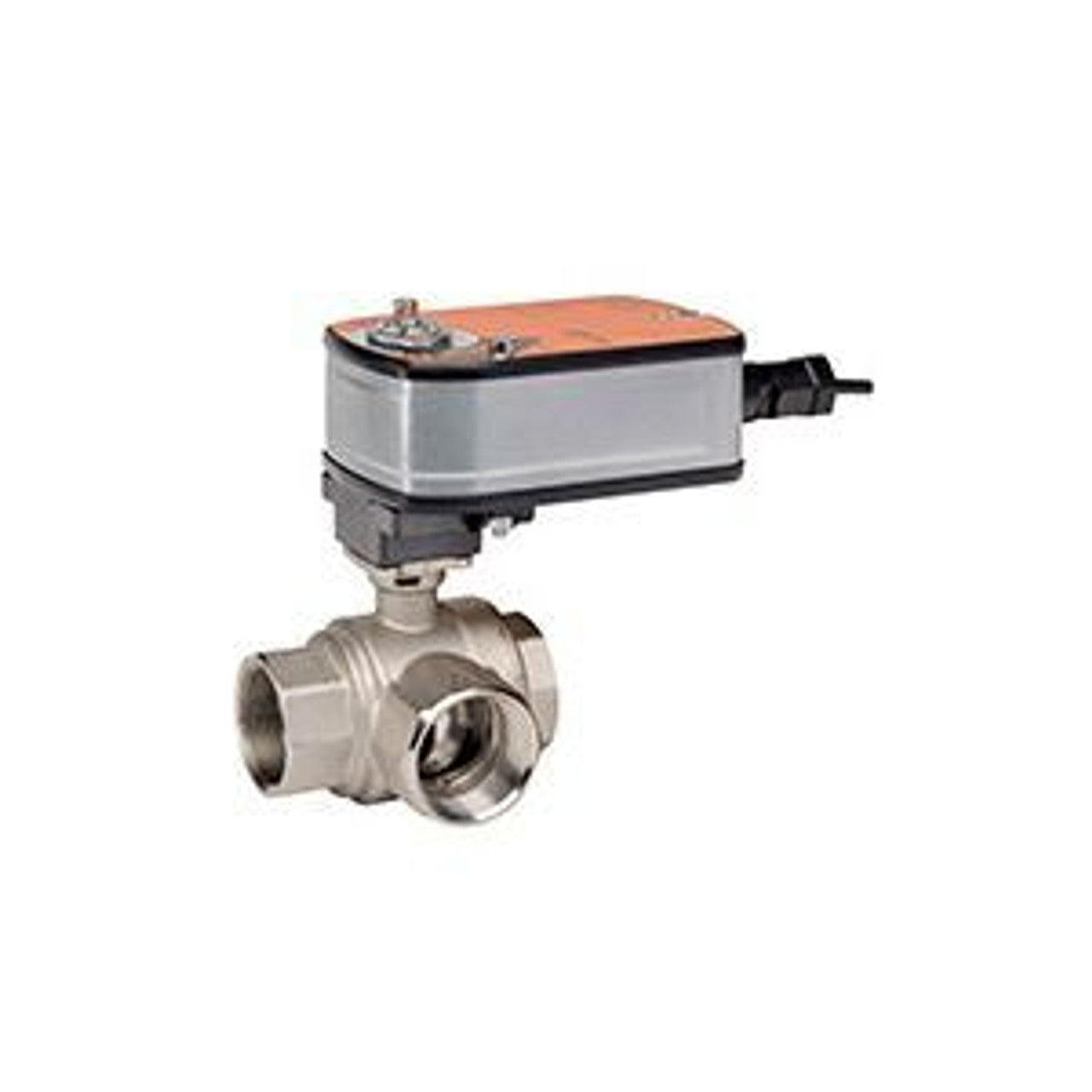

The Belimo B310B+LF24-SR-S is a three-way control valve that operates with a flow capacity of 1.2 Cv. It is designed for use with chilled or hot water systems and can handle up to a sixty percent glycol mixture. The valve is sized at one half inches and utilizes an internal thread for end fittings.

• Controls fluid flow effectively in HVAC systems.
• Spring return actuator ensures reliable operation.
• Voltage compatibility of AC/DC twenty-four volts.

Product Highlights

The Belimo B310B+LF24-SR-S is suitable for applications requiring precise flow control in HVAC installations.

Product Information

Standard Information

• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way

Technical Specifications

• Cv: 1.2
• Valve Size: 0.5 [15]
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA2
• Electrical Connection: cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
