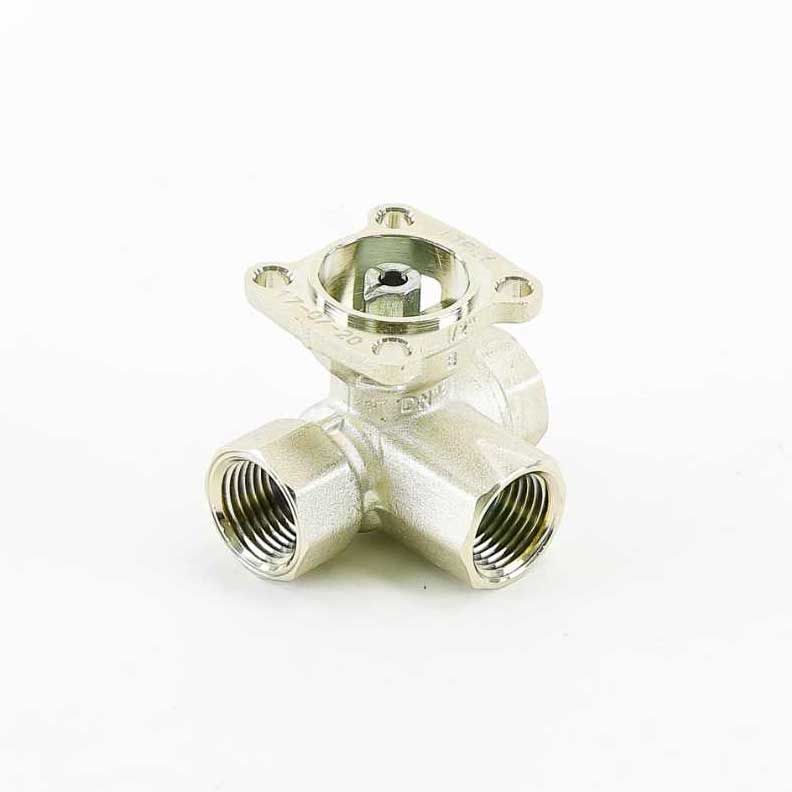

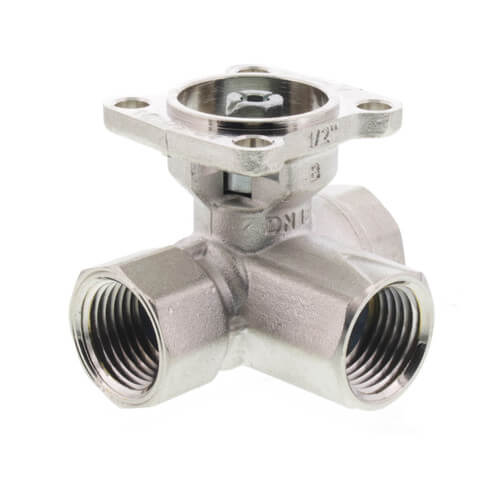

Belimo B310B CCV 3 Way 1/2 NPT 1.2 Cv

Product Description

The Belimo B310B is a characterized control valve designed to provide precise flow control in HVAC systems. This valve is commonly used in air handling units for heating or cooling coils and is suitable for hydronic systems with variable or constant flow.

• Built for use in chilled or hot water services
• Utilizes a ball valve design for self-cleaning and zero leakage
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit

Product Highlights

This valve features an equal percentage flow characteristic for improved regulation and efficiency.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B310B

Technical Specifications

• Valve Size: 0.5 inches
• Flow Capacity (Cv): 1.2
• Close-Off Pressure: 200 psi
• Operating Conditions: 0 degrees Fahrenheit to 250 degrees Fahrenheit
• Material: Forged brass body with chrome plated brass ball and nickel plated brass stem
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Application: Air handling units, fan coil units, unit ventilators, VAV boxes
