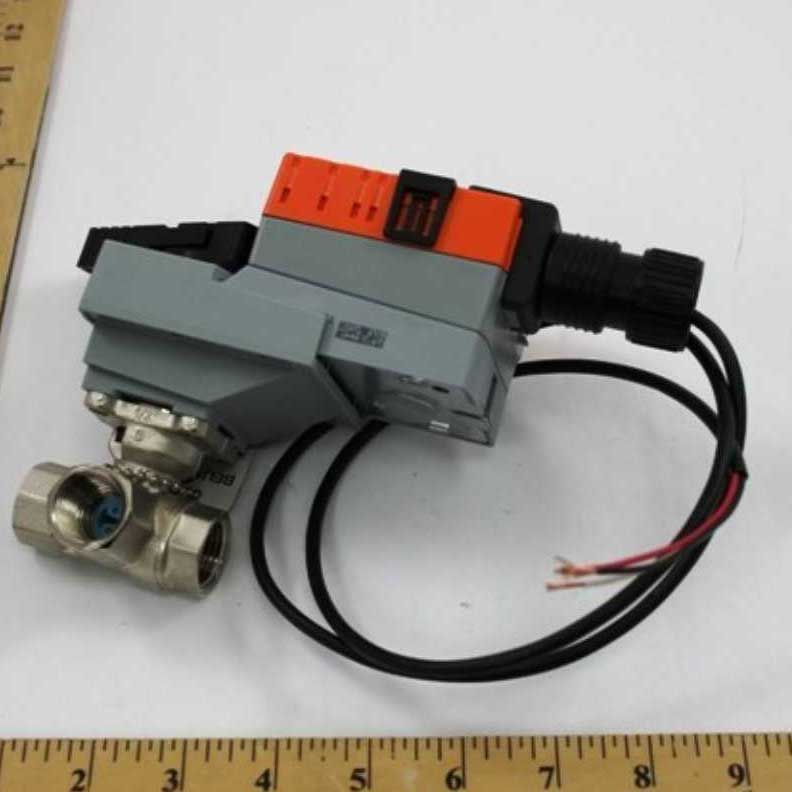

Belimo B310+LRB24-3 - 3 Way Valve Assembly with Actuator, 1/2 Inch, 1.2 Cv, 24V Floating

Product Description

The Belimo B310+LRB24-3 is a control valve with an actuator designed for HVAC systems. It is a three-way valve with a stainless steel trim and a Cv rating of 1.2. The unit operates at 24V with a floating control type.

• Three-way valve with 1/2 inch size
• Cv rating of 1.2
• 24V floating control type

Product Highlights

Designed for HVAC use. Provides a robust solution for controlling hot or chilled water. Equipped with a floating control type and 24V power supply.

Product Information

Standard Information

• Brand: Belimo
• MPN: B310+LRB24-3

Technical Specifications

• Valve Size: 0.5 inches
• Cv: 1.2
• Pattern: 3-way
• Control Type: Floating/3-point
• Actuator Type: Non fail-safe
• Trim: Stainless steel
• Fluid: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Voltage AC/DC: AC/DC 24V
• Angle of Rotation: 90 degrees
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Manual Override: External push button
• Power Consumption (Holding): 0.2 W
• Power Consumption (Running): 1.5 W
• Running Time (Motor): 90 seconds / 90 degrees
• Electrical Connection: cable
• Controllable Flow Range: 75B0
• Pressure Independent: No
