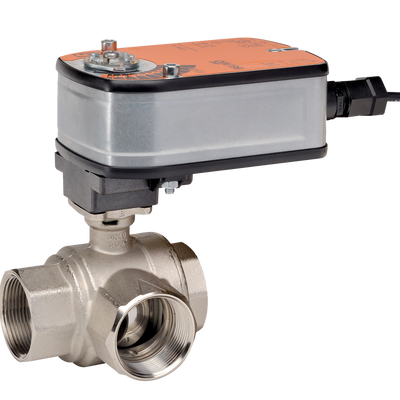

Belimo B310+LF24-SR | CCV | 0.5 | 3 Way | 1.2 Cv | w/ Spg Rtn | 24V | 2-10V

Product Description

The Belimo B310+LF24-SR is a three-way valve designed for efficient control in various HVAC applications. This valve has a flow coefficient of 1.2 Cv and operates at twenty-four volts AC/DC. It is suitable for chilled or hot water systems, and it supports up to sixty percent glycol.

• Three-way valve configuration
• Spring return actuator
• Compatible with chilled or hot water

Product Highlights

This valve is ideal for applications requiring flexible water control and efficient energy use.

Product Information

Standard Information

• Brand: Belimo
• MPN: B310+LF24-SR

Technical Specifications

• Valve Size: 0.5 inches
• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• End Fitting: Internal thread
• Fluid Type: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim Material: Stainless steel
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds at 90 degrees
• Voltage: AC/DC 24 V
