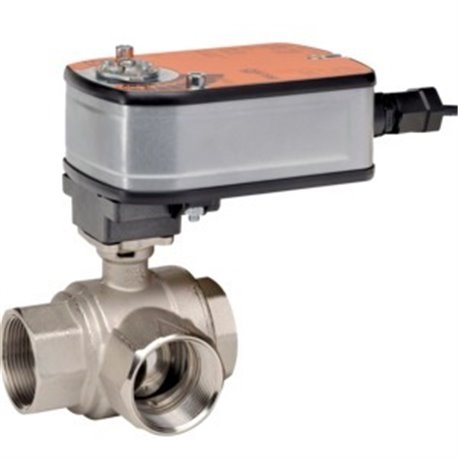

Belimo B310+LF24-MFT CCV 0.5 3 Way 1.2 Cv w/ Spg Rtn 24V MFT

Product Description

The Belimo B310+LF24-MFT is a 0.5-inch three-way control valve designed for effective flow regulation in HVAC systems. It operates on AC/DC twenty-four volts and is suitable for chilled or hot water applications, including solutions with up to sixty percent glycol.

• Three-way pattern for versatile flow management
• Spring return actuator for reliable operation
• Stainless steel trim for enhanced durability

Product Highlights

This valve is essential for regulating fluids in heating, cooling, and process applications. The unique design allows for precise control while ensuring efficient system performance.

Product Information

Standard Information

• Brand: Belimo
• MPN: B310+LF24-MFT

Technical Specifications

• Valve Size: 0.5 [15]
• Pattern: 3-way
• Cv: 1.2
• Angle of Rotation: 90 degrees
• Fluid: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Pressure Independent: NO
• Trim: Stainless steel
• Actuator Type: Spring return
• Voltage AC/DC: AC/DC 24 V
• Running Time (Motor): 150 seconds / 90 degrees
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
