Product Description

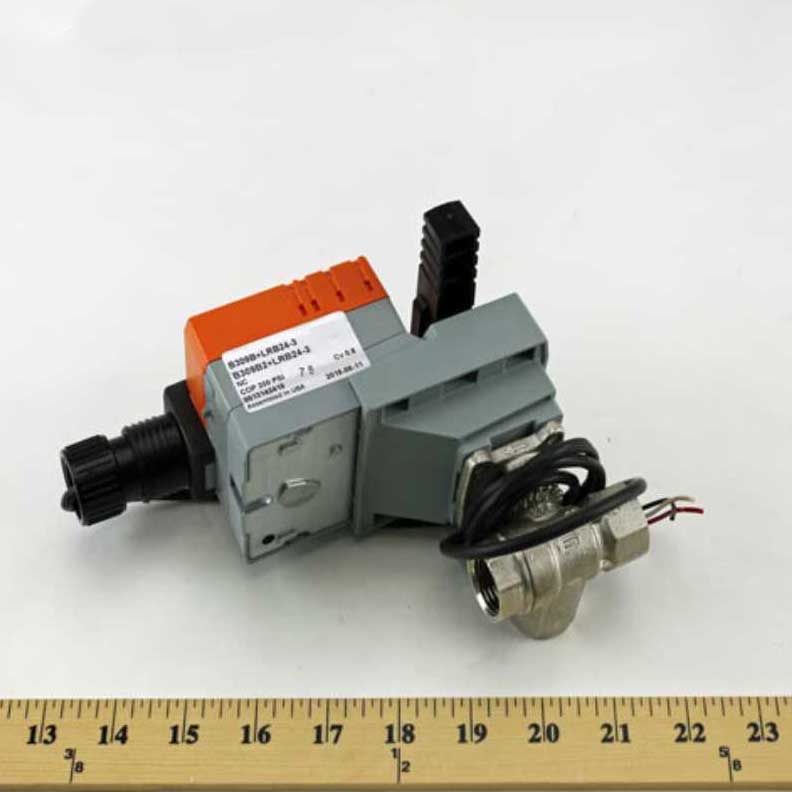

The Belimo B309B+LRB24-3 Characterized Control Valve is designed for precise control of fluid flow in HVAC systems. This valve is a three-way model with a half-inch size and a flow coefficient of 0.8. It operates at 24V with floating control and features a non-spring return actuator.
- Ideal for HVAC systems
- Three-way valve configuration
- Precise flow control
Product Highlights
Optimize your HVAC system with the Belimo B309B+LRB24-3. This valve offers accurate flow regulation and is suitable for chilled or hot water applications.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: B309B+LRB24-3
Technical Specifications
-
Valve Size: 0.5 inches
-
Flow Coefficient (Cv): 0.8
-
Pattern: 3-way
-
End Fitting: Internal thread
-
Trim: Chrome plated brass
-
Actuator Type: Non fail-safe
-
Control Type: Floating/3-point
-
Voltage: AC/DC 24V
-
Power Consumption (Running): 1.5 W
-
Power Consumption (Holding): 0.2 W
-
Running Time (Motor): 90s for 90 degrees
-
Angle of Rotation: 90 degrees
-
Electrical Connection: Cable
-
Manual Override: External push button
-
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
-
Fluid: Chilled or hot water up to 60% glycol
-
Pressure Independent: No
-
Weight: 1.6 lbs
