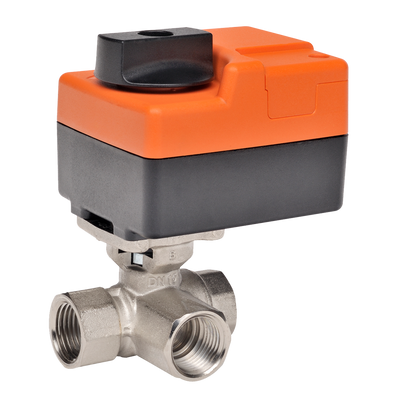

Belimo B309B+TR24-SR-T | CCV | 0.5 | 3 Way | 0.8 Cv | w/ Non-Spg | 24V | 2-10V

BELIMO
Brand: BELIMO
SKU: B309B+TR24-SR-T
Availability: Out Of Stock
$345.33
$345.33
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Belimo B309B+TR24-SR-T is a three-way valve assembly designed for use in heating and cooling systems. This valve works well in air handling units, fan coil units, and various hydronic applications. It integrates smoothly into heating and cooling coils and is suitable for systems with variable or constant flow.

  • Used in air handling and fan coil units.
  • Compatible with chilled or hot water up to 60% glycol.
  • Features a chrome plated brass trim with 0.8 CV capacity.

Product Highlights

This valve is optimized for use in hydronic systems, providing efficient control over flow rates and ensuring reliable operation across a range of applications.

Product Information

Standard Information

  • Brand: Belimo
  • MPN: B309B+TR24-SR-T
Technical Specifications
Angle of Rotation
90 degrees
Controllable Flow Range
75 degrees
Cv
0.8
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
No
Trim
Chrome plated brass
Valve Size
0.5 inches
Actuator Type
Non fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP40 NEMA 1
Electrical Connection
Terminals
Manual Override
Push down handle
Power Consumption (Running)
0.5 W
Running Time (Motor)
90 seconds
Voltage AC/DC
AC/DC 24 V
