Belimo B309+LF120 CCV 0.5 3 Way 0.8 Cv w/ Spg Rtn 120V On/Off

Product Description

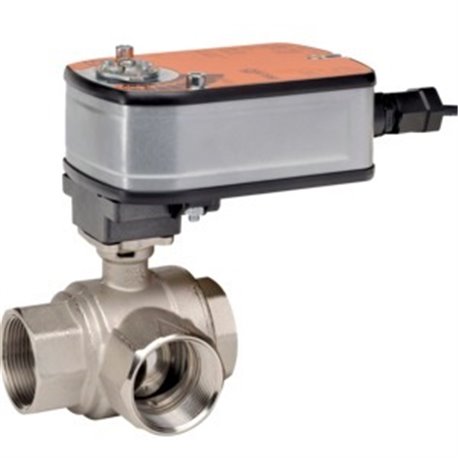

The Belimo B309+LF120 is a three-way control valve with a flow capacity of 0.8 Cv designed for efficiency in HVAC systems. This valve is ideal for applications that involve chilled or hot water with up to sixty percent glycol. It operates at 120 volts and features a spring return actuator.

• Three-way valve pattern for versatile flow control
• Stainless steel trim for durability
• Electrical connection via cable

Product Highlights

This valve is suitable for various heating and cooling applications, ensuring precise control over fluid flow in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B309+LF120

Technical Specifications

• Valve Size: 0.5 [15]
• Flow Capacity (Cv): 0.8
• Angle of Rotation: 90 degrees
• Fluid Type: Chilled or hot water up to 60% glycol
• Actuator Type: Spring return
• Voltage: AC 120 V
• Degree of Protection: IP54 NEMA 2
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 5.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Electrical Connection: Cable
