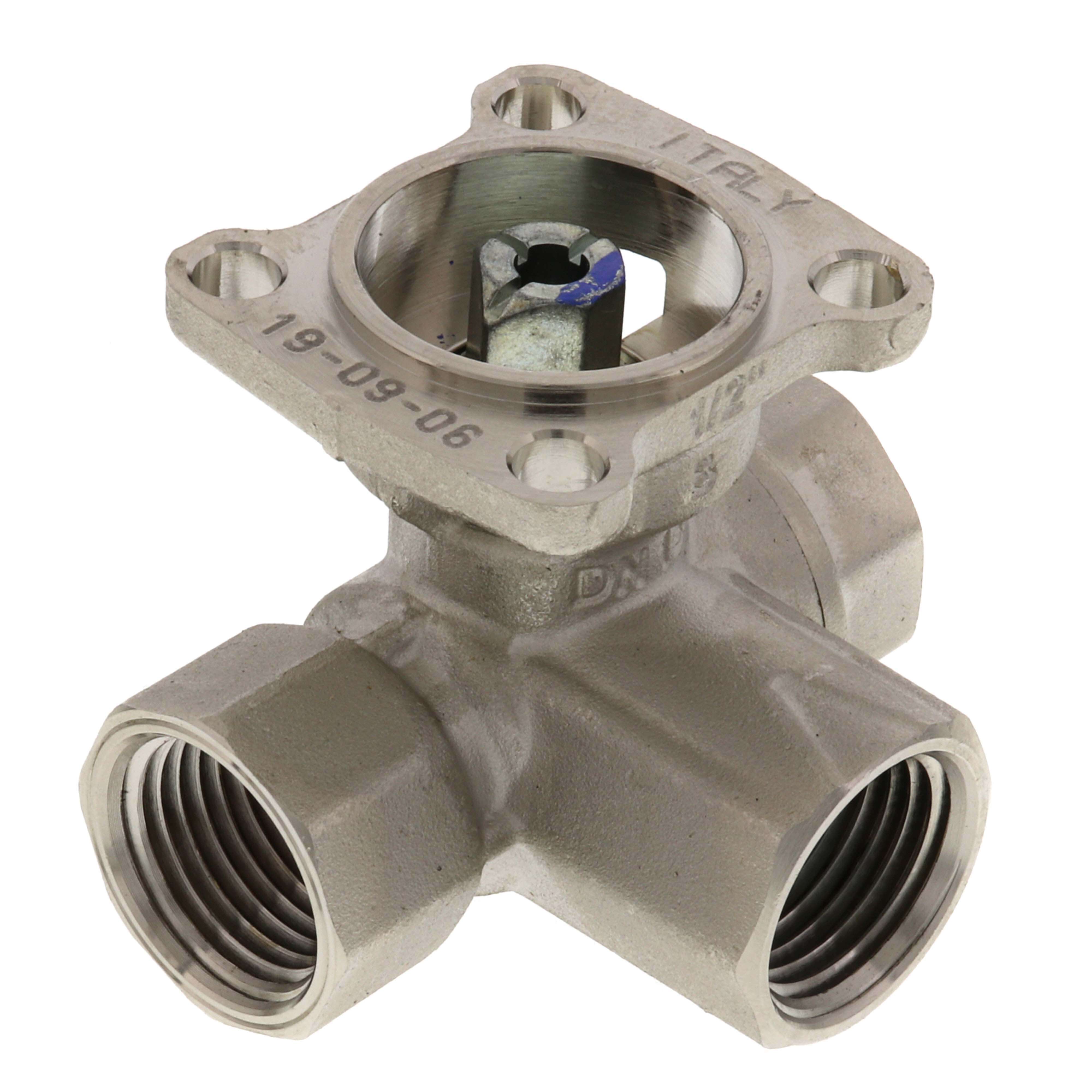

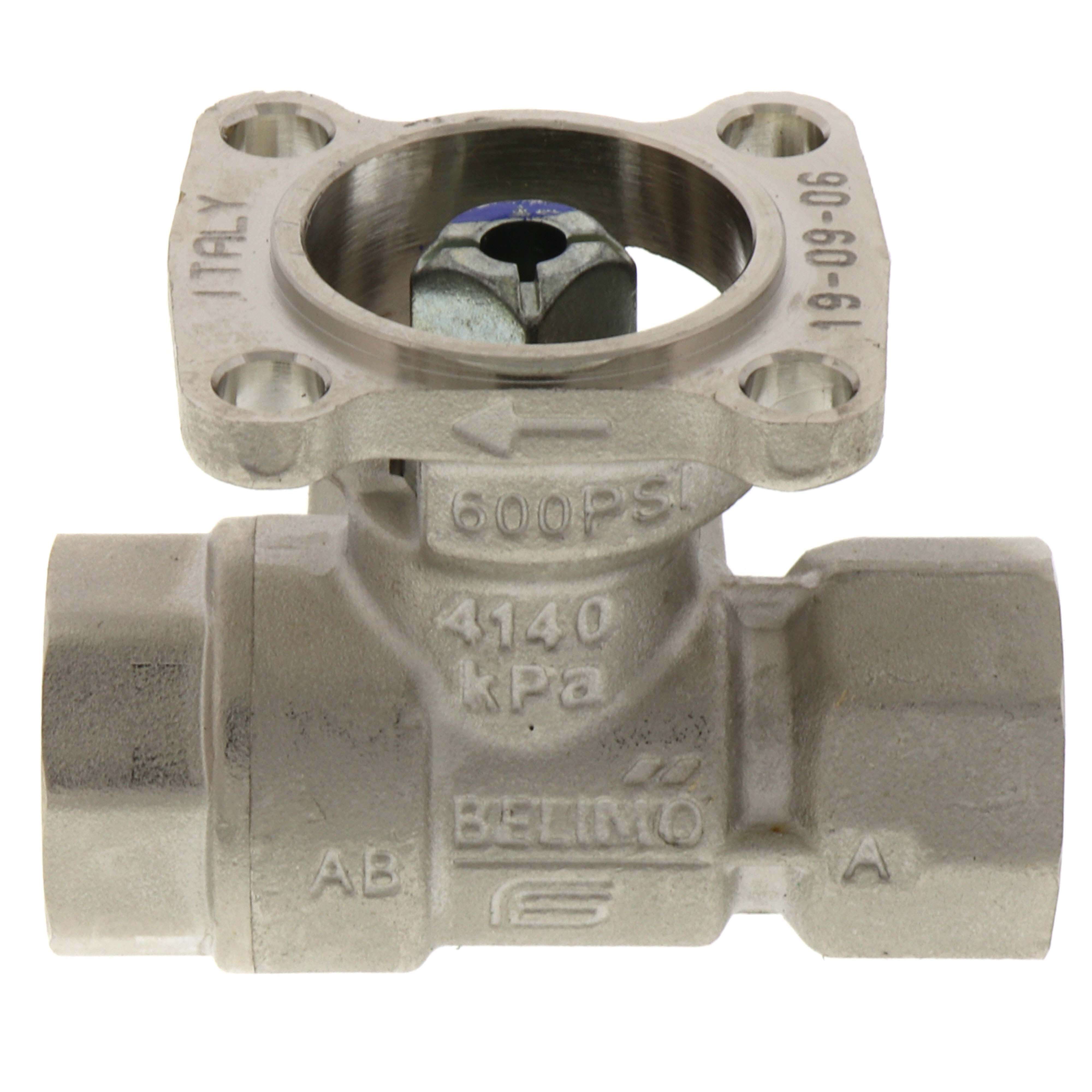

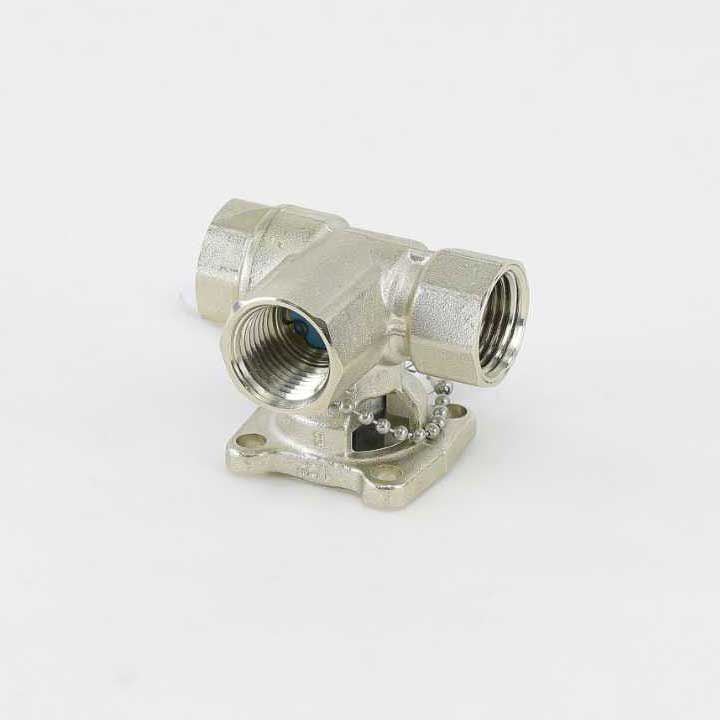

Belimo B309 CCV 3 Way 1/2 in NPT 0.8 Cv

Product Description

The Belimo B309 is a characterized control valve known as CCV. It has a size of one-half inch NPT and a flow capacity of zero point eight Cv. This valve is used in air handling units for both heating and cooling systems, as well as in fan coil units. It is ideal for use in hydronic systems and is designed to provide reliable performance in variable or constant flow applications.

• Suitable for chilled or hot water with up to sixty percent glycol.
• Offers a self-cleaning design with zero leakage, rated for water temperatures up to two hundred fifty degrees Fahrenheit.
• Ball valve design ensures effective and stable thermal regulation.

Product Highlights

This valve is essential for effective temperature control in HVAC systems, ensuring energy efficiency and reliability.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B309

Technical Specifications

• Size: one-half inch NPT
• Flow Capacity: zero point eight Cv
• Service: Chilled, hot water, up to sixty percent glycol
• Close-Off Pressure: two hundred psi
• Operating Conditions: zero degrees Fahrenheit to two hundred fifty degrees Fahrenheit
• Flow Characteristic: A-port equal percentage, B-port modified for constant common port flow
• Body Material: Nickel plated forged brass
• Trim Material: Stainless steel
