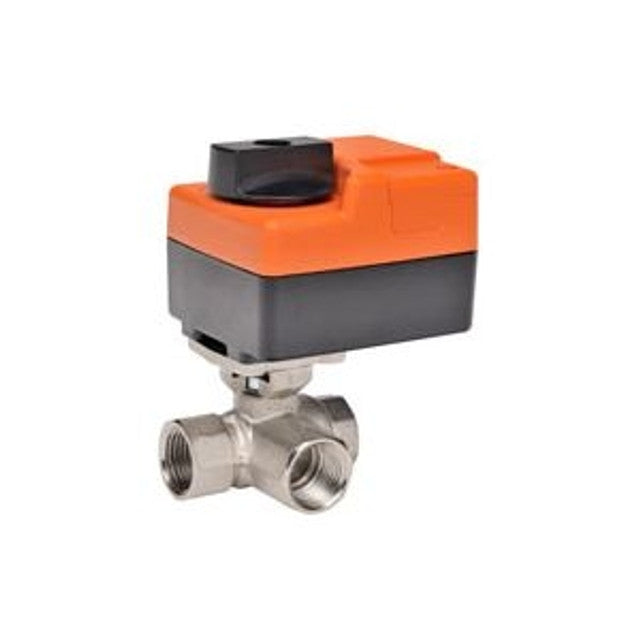

Belimo B308+TR24-3 | CCV | 0.5 | 3 Way | 0.46 Cv | w/ Non-Spg | 24V | Floating

Product Description

The Belimo B308+TR24-3 is a three-way control valve designed for precise flow control in HVAC systems. It operates at 24 volts and features a Cv of 0.46. This valve is suitable for use with chilled or hot water, making it versatile for various applications.

• Voltage: 24V AC
• Flow Type: Floating/3-point
• Valve Size: 0.5 inches

Product Highlights

The valve ensures effective flow management in heating and cooling systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B308+TR24-3

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 0.46
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 0.5 inches
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Degree of Protection: IP40 NEMA 1
• Electrical Connection: Cable
• Manual Override: Push down handle
• Power Consumption (Running): 1 W
• Running Time (Motor): 90 seconds
• Voltage AC/DC: AC 24 V
