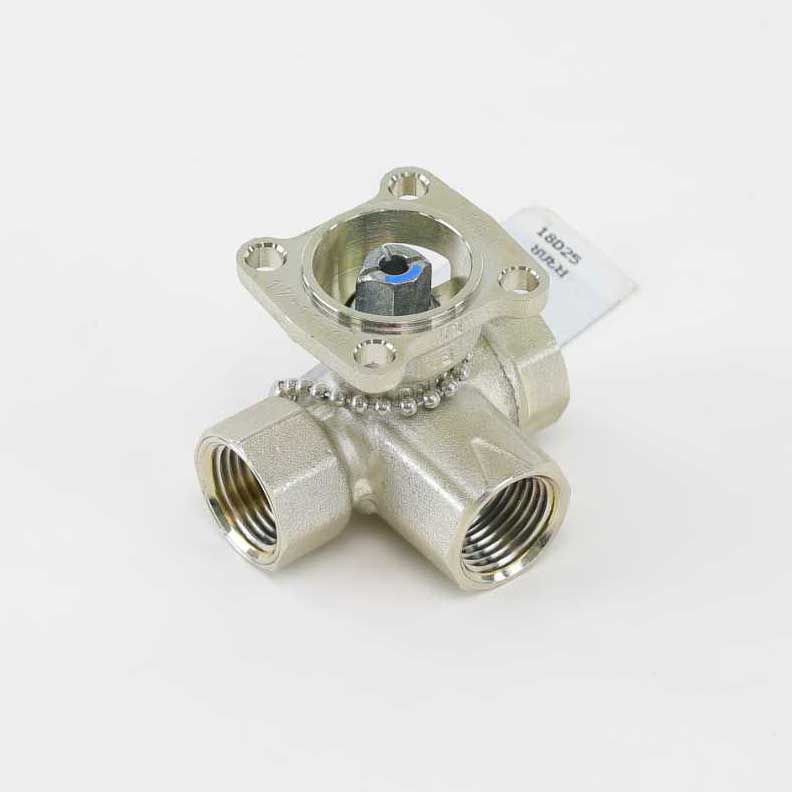

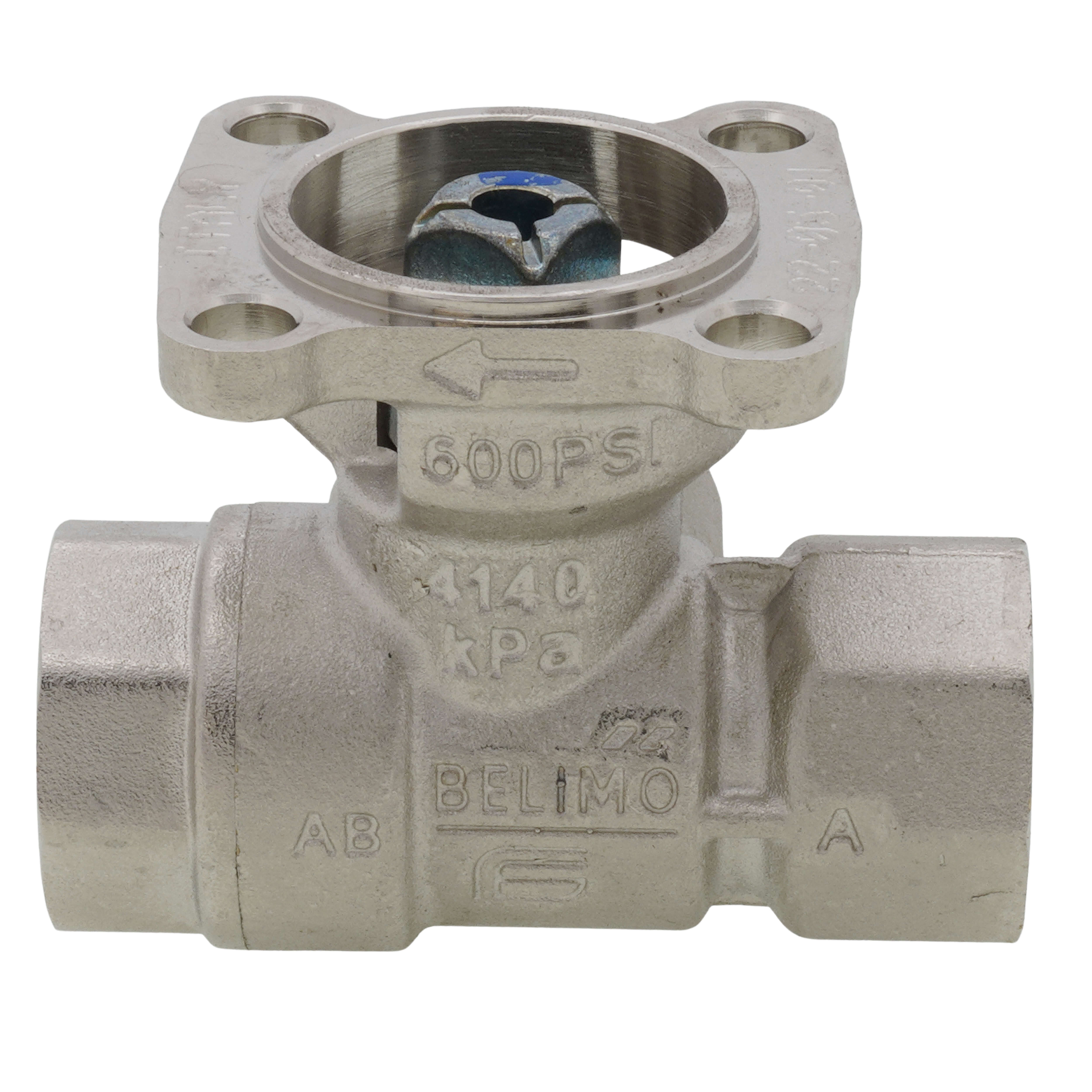

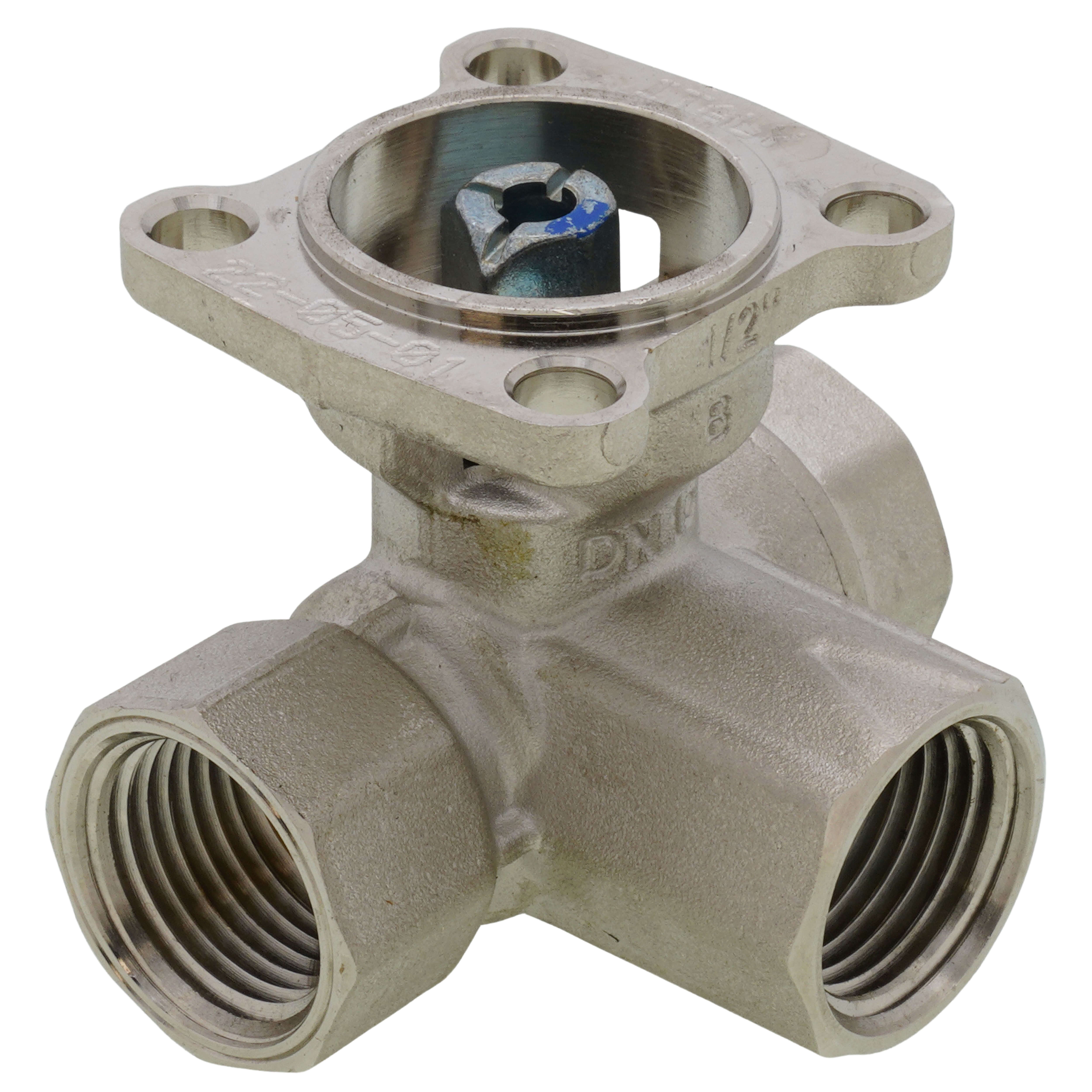

Belimo B308 CCV 3-Way 1/2 in NPT 0.46 Cv

Product Description

The Belimo B308 is a characterized control valve designed for HVAC systems. The valve features a three-way design with a half-inch NPT connection and a flow coefficient of 0.46. This valve is vital for effective temperature regulation in heating and cooling applications.

• Used in air handling units, fan coil units, and VAV systems.
• Suitable for hydronic systems with both variable and constant flow.
• Offers a reliable self-cleaning feature with zero leakage.

Product Highlights

The Belimo B308 enhances the stability of control in HVAC systems and is capable of managing chilled or hot water up to a maximum of two hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B308

Technical Specifications

• Flow Characteristic: A-Port Equal Percentage, B-Port Modified Linear
• Close-Off Pressure: 200 psi
• Operating Conditions: 0 F to 250 F (-18 C to 120 C)
• Trim Material: Stainless Steel
• Valve Size: 0.5 inches
• Compatible Fluids: Chilled or hot water with up to 60% glycol
• Controllable Flow Range: 75B0
