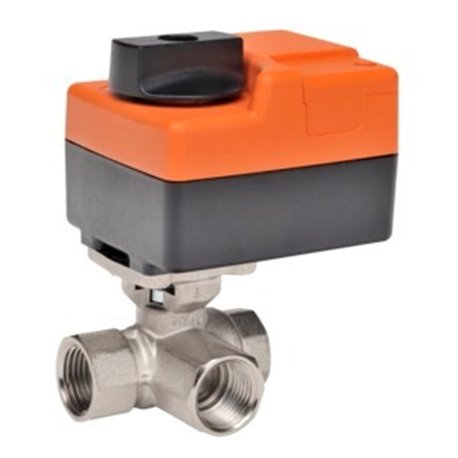

Belimo B307B+TR24-SR | CCV | 0.5 | 3 Way | 0.3 Cv | w/ Non-Spg | 24V | 2-10V

Product Description

The Belimo B307B+TR24-SR is a three-way control valve designed for heating and cooling applications. It is commonly used in air handling units, fan coil units, and VAV systems. This valve is ideal for hydronic systems operating under variable or constant flow conditions.

• Used in air handling units on heating or cooling coils.
• Applicable for fan coil units and bypass loops.
• Operates effectively with chilled or hot water systems.

Product Highlights

Ideal for efficient temperature control in hydronic systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B307B+TR24-SR

Technical Specifications

• Angle of Rotation: 90
• Controllable Flow Range: 75B0
• Cv: 0.3
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Chrome plated brass
• Valve Size: 0.5 inches [15]
• Actuator Type: Non fail-safe
• Control Type: DC 2...10 V
• Degree of Protection: IP40 NEMA1
• Electrical Connection: Cable
• Manual Override: Push down handle
• Power Consumption (Running): 0.5 W
• Running Time (Motor): 90 seconds / 90B0
• Voltage AC/DC: AC/DC 24 V
