Belimo B307B+LF24-S CCV 0.5 3 Way 0.3 Cv w/ Spg Rtn 24V On/Off SW

Product Description

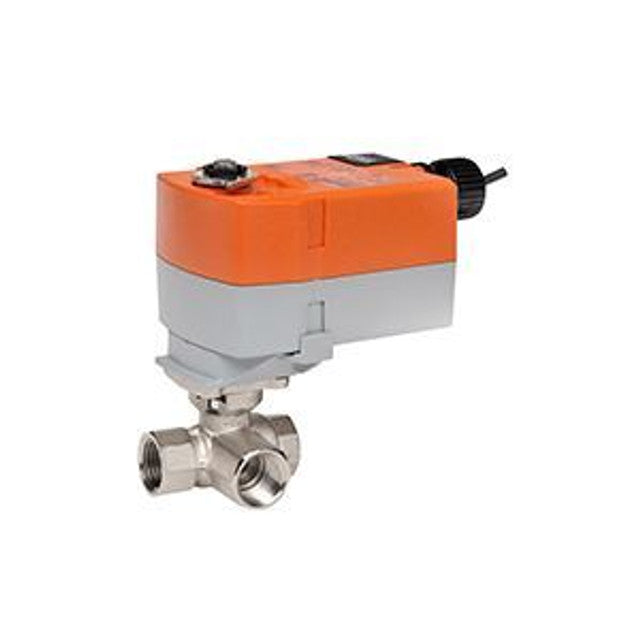

The Belimo B307B+LF24-S is a control valve designed for efficient flow regulation. It features a Cv rating of 0.3 and operates with a 24V power source. The valve is a three-way model suitable for directing chilled or hot water with up to sixty percent glycol. Ideal for applications requiring precise control, the valve's actuator has a spring return and includes an auxiliary switch for added functionality.

• Three-way valve with a Cv of 0.3
• Spring return actuator with an auxiliary switch
• Compatible with chilled or hot water

Product Highlights

This valve ensures reliable operation in regulating fluid flow, making it a key component in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B307B+LF24-S

Technical Specifications

• Valve Size: 0.5 inches
• Pattern: 3-way
• Cv: 0.3
• Fluid: Chilled or hot water up to 60% glycol
• Angle of Rotation: 90 degrees
• Actuator Type: Spring return
• Voltage AC/DC: AC/DC 24V
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): Less than 25 seconds
• Degree of Protection: IP54 NEMA2
• Auxiliary Switches: 1 x SPDT
• Electrical Connection: Cable
