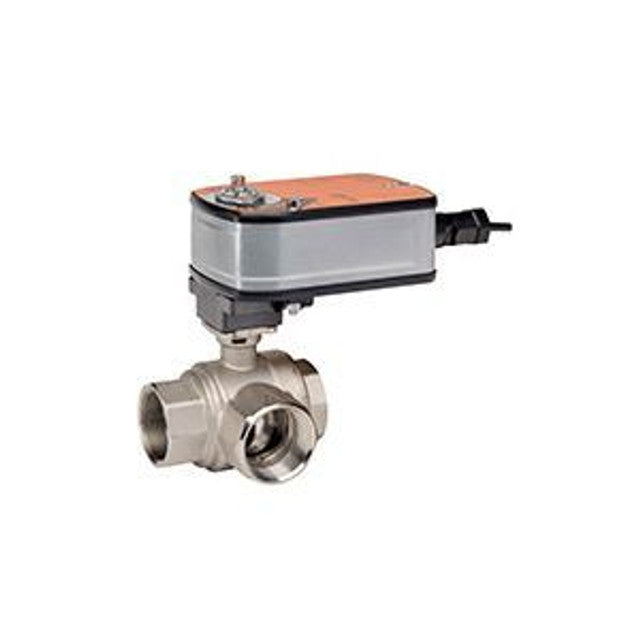

Belimo B307B+LF120-S | CCV | 0.5 | 3 Way | 0.3 Cv | w/ Spg Rtn | 120V | On/Off | SW | Belimo

Product Description

The Belimo B307B+LF120-S is a three-way valve designed for control in chilled and hot water systems. This valve operates at a voltage of one hundred twenty volts and features a spring return actuator, making it effective for on/off control applications.

• Compatible with chilled or hot water with up to sixty percent glycol.
• Operates with a Cv value of 0.3.
• Constructed with chrome plated brass for durability.

Product Highlights

This valve effectively modulates flow rates and enhances the efficiency of HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B307B+LF120-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 degrees
• Cv: 0.3
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim Material: Chrome plated brass
• Valve Size: 0.5 inches (15 mm)
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 3.5 watts
• Power Consumption (Running): 5.5 watts
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds at 90 degrees
• Voltage AC/DC: AC 120 volts
