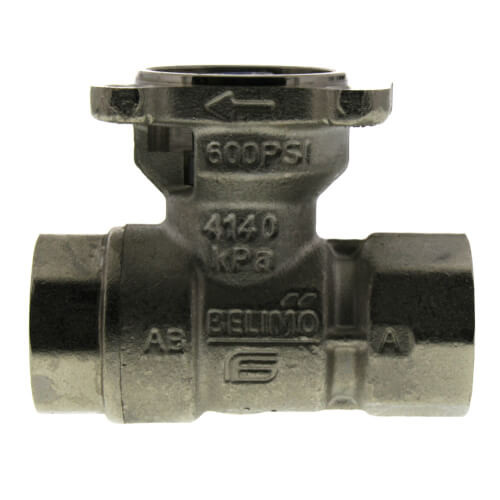

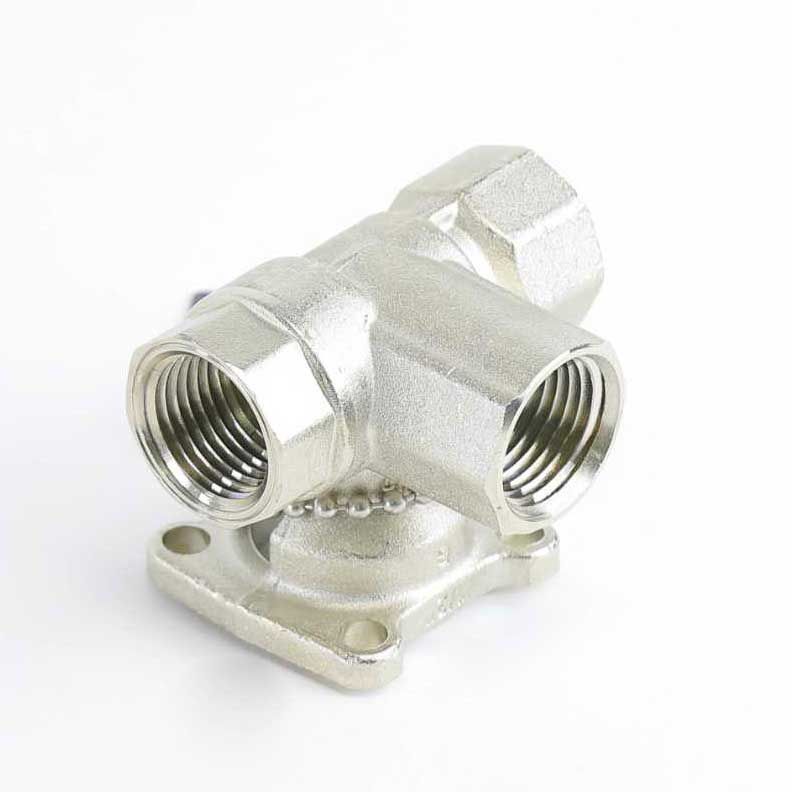

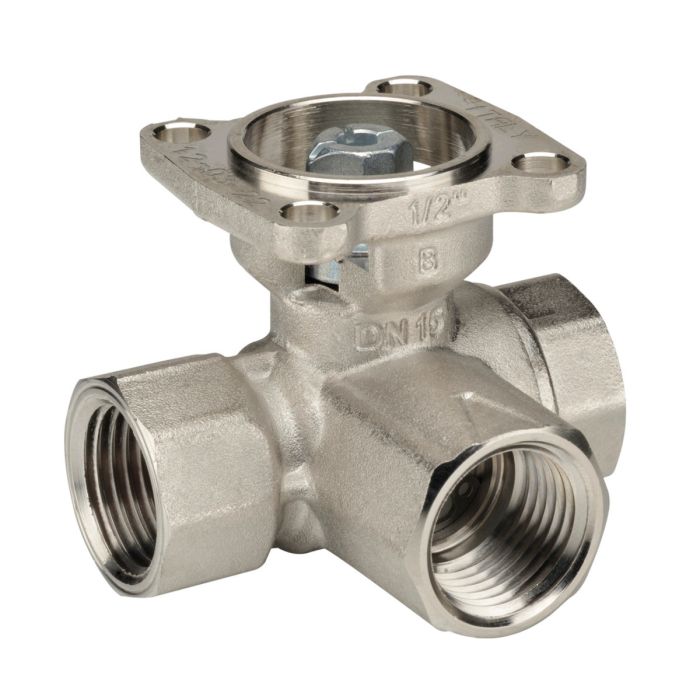

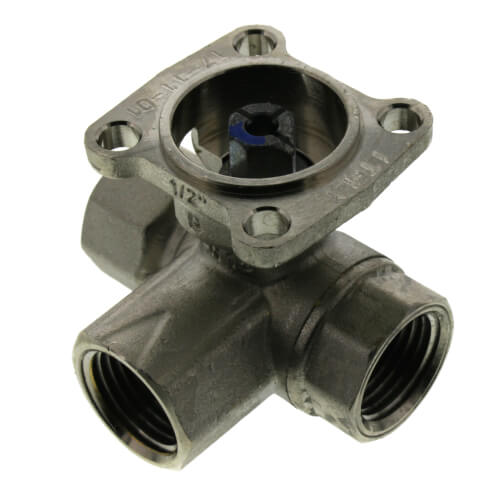

Belimo B307 CCV 3 Way 1/2 NPT 0.3 Cv

Product Description

The Belimo B307 is a 3-way characterized control valve designed for use in HVAC and hydronic systems. Its forged brass body with a stainless steel ball and stem ensures durability and performance in various applications.

• Suitable for chilled and hot water, up to sixty percent glycol.
• Operates effectively in heating or cooling coils and air handling units.
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve offers reliable and stable control of flow, reducing leakage and enhancing energy efficiency.

Product Information

Standard Information

• Brand: Belimo
• MPN: B307

Technical Specifications

• Service: Chilled, hot water, up to sixty percent glycol
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-Port equal percentage, B-Port modified for constant common port flow
• Operating Conditions: 0 F to 250 F (-18 C to 120 C)
• Body Pressure Rating: 600 psi
• Trim: Stainless steel
• Valve Size: 0.5 inches
