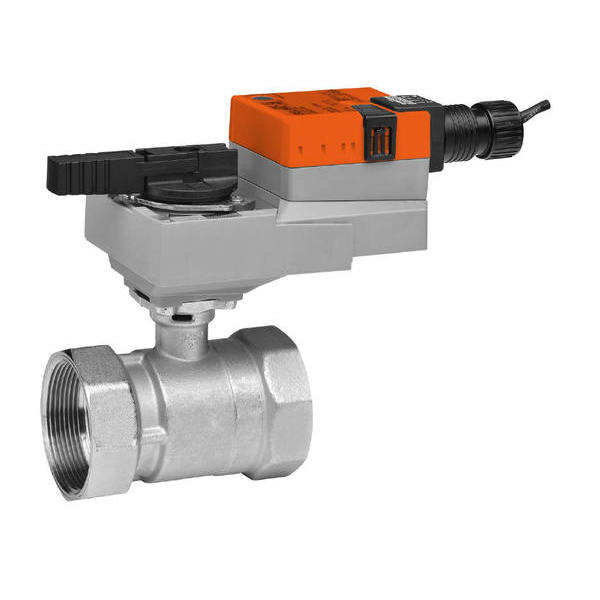

Belimo B280+ARX24-MFT CCV Assembly 2 Way 3 in. NPT 170 Cv

Product Description

The Belimo B280+ARX24-MFT is a characterized control valve designed for effective flow regulation. It features a robust forged brass body and a stainless steel ball and stem. This valve operates with a direct coupled actuator.

• Ball valve design provides self-cleaning and zero leakage.
• Suitable for air handling units and hydronic systems.
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve operates under variable flow conditions and supports system efficiency in HVAC applications while ensuring reliable thermal control.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B280+ARX24-MFT

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: Chilled, hot water, up to sixty percent glycol
• Power Consumption: 3.5 W running, 1.3 W holding
• Close-Off Pressure: 100 psi
• Flow Characteristic: Equal percentage
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 18 GA plenum rated cable with 1/2 in. conduit connector
