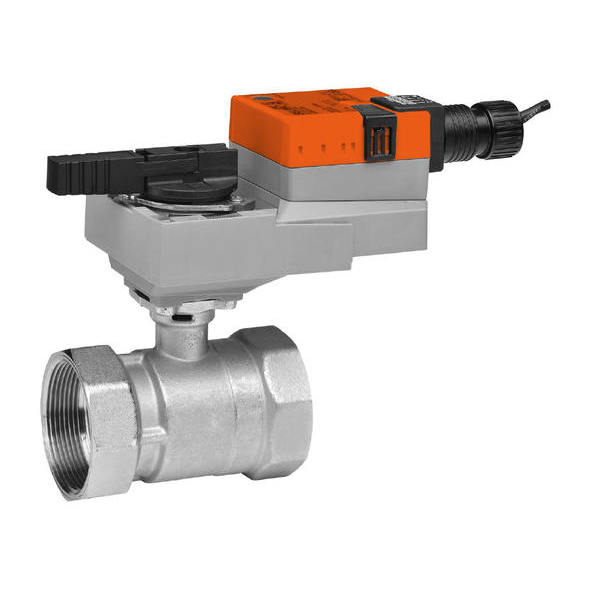

Belimo B280+ARB24-3 CCV Assembly 2 Way 3 in. NPT 170 Cv

Product Description

The Belimo B280+ARB24-3 is a control valve designed for HVAC applications. This product features a nickel-plated brass body and stainless steel components for durability. It operates with a direct coupled actuator and functions with a non-fail safe mechanism.

• Voltage: 24 VAC/DC
• Cv rating: 170
• Actuator type: Non fail-safe

Product Highlights

This control valve is suitable for both chilled and hot water applications. Ideal for HVAC control systems, it offers reliable performance.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B280+ARB24-3

Technical Specifications

• Valve Size: 3 inches (80 mm)
• Cv: 170
• Flow Range: 75-0
• Angle of Rotation: 90 degrees
• End Fitting: Internal thread
• Fluid Type: Chilled or hot water up to 60% glycol
• Control Type: Floating/3-point
• Voltage: AC/DC 24 V
• Power Consumption (Running): 2.5 W
• Power Consumption (Holding): 0.5 W
• Running Time (Motor): 90 seconds
• Protection Class: IP54 NEMA 2
