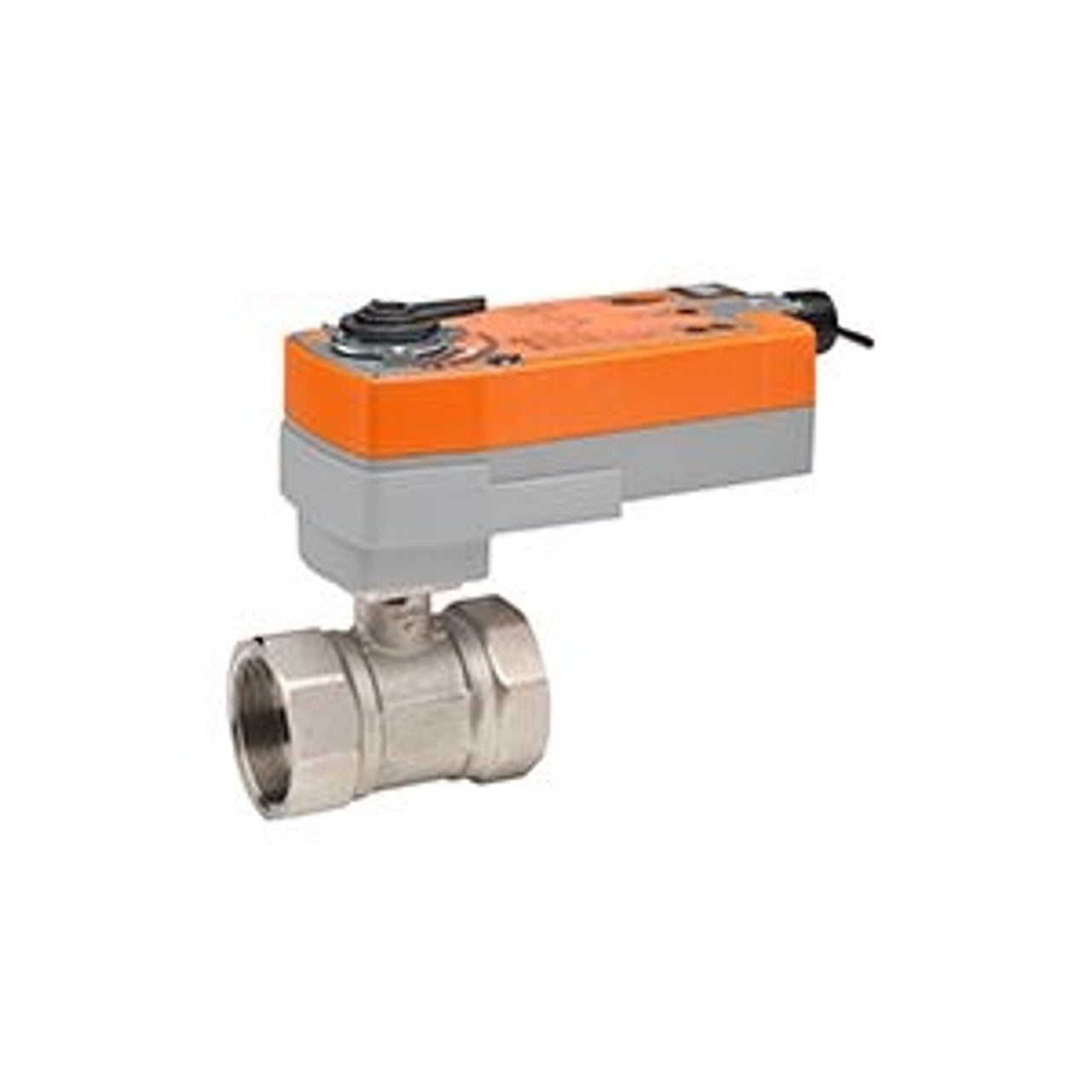

Belimo B280+AFRBUP CCV Assembly 2 Way 3 in NPT 170 Cv

Product Description

The Belimo B280+AFRBUP is a characterized control valve designed for HVAC systems. This valve features a two-way design with a three-inch NPT connection and a flow coefficient of one hundred seventy. It is ideal for use in air handling units, on heating or cooling coils, and in fan coil units.

• Valve is used in HVAC systems for efficient flow control.
• Suitable for hydronic systems with variable flow.
• Offers self-cleaning design with zero leakage.

Product Highlights

Provides reliable performance in heating and cooling applications.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B280+AFRBUP

Technical Specifications

• Angle of Rotation: 90 degrees
• Control Type: On/Off
• Flow Characteristic: Equal Percentage
• Fluid: Chilled or hot water, up to 60% glycol
• Pressure Independent: No
• Trim: Stainless steel
• Electrical Connection: Cable with 3 ft 18 GA appliance cable
• Operating Conditions: -22 F to 122 F
