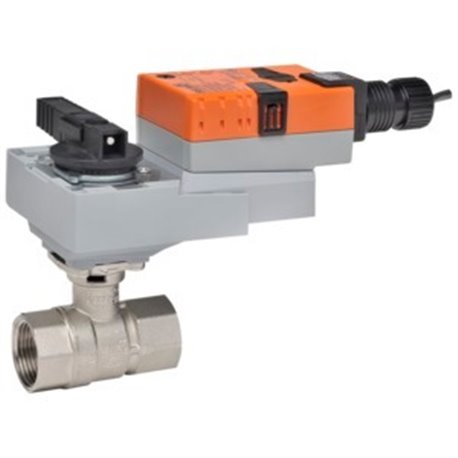

Belimo B277+ARX24-MFT CCV 3in 2 Way 70 Cv w/Non-Spring

Product Description

The Belimo B277+ARX24-MFT is a characterized control valve that is ideal for heating and cooling applications. This valve features a three-inch size and is designed for two-way flow with a capacity rating of seventy Cv. It includes a non-spring return actuator, which operates with a voltage of twenty-four VAC and utilizes multi-function technology.

• Used in air handling units and fan coil units
• Offers self-cleaning design with zero leakage
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit

Product Highlights

The Belimo B277+ARX24-MFT control valve is suitable for hydronic systems with variable flow. It ensures efficient performance in various HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B277+ARX24-MFT

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: Chilled, hot water, up to 60% glycol
• Power Consumption: 3.5 W running, 1.3 W holding
• Close-Off Pressure: 100 psi
• Flow Characteristic: Equal percentage
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 18 GA plenum rated cable with 1/2 in. conduit connector
• Angle of Rotation: 90 degrees
