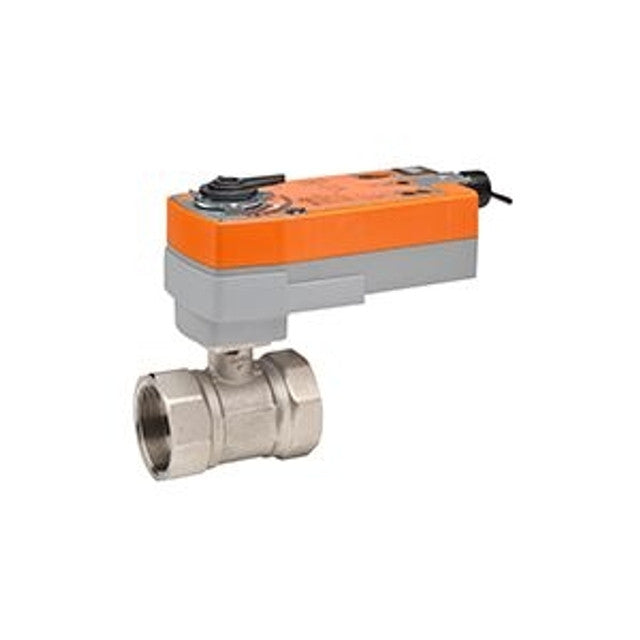

Belimo B277+AFRX24-MFT CCV 3in 2 Way 70 Cv w/Spring

Product Description

The Belimo B277+AFRX24-MFT is a characterized control valve designed for HVAC systems. This valve features a forged brass body that is nickel plated for durability and corrosion resistance. It operates with a stainless steel ball and stem, providing reliable performance. The direct coupled actuator has a torque rating of one hundred eighty inch-pounds and is suitable for modulating control with spring return functionality.

• Ideal for air handling units and fan coil heating or cooling coils.
• Self-cleaning ball valve design with zero leakage.
• Application in hydronic systems with variable flow capabilities.

Product Highlights

Utilized extensively in heating, cooling, and hydronic systems, this control valve ensures efficient flow management and system reliability.

Product Information

Standard Information

• Brand: Belimo
• MPN: B277+AFRX24-MFT

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 7.5 W Running, 3 W Holding
• Close-Off Pressure: 100 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Appliance Cable With 1/2 in. Conduit Connector
• Cv: 70
• Valve Size: 3 inches
• Angle of Rotation: 90 degrees
