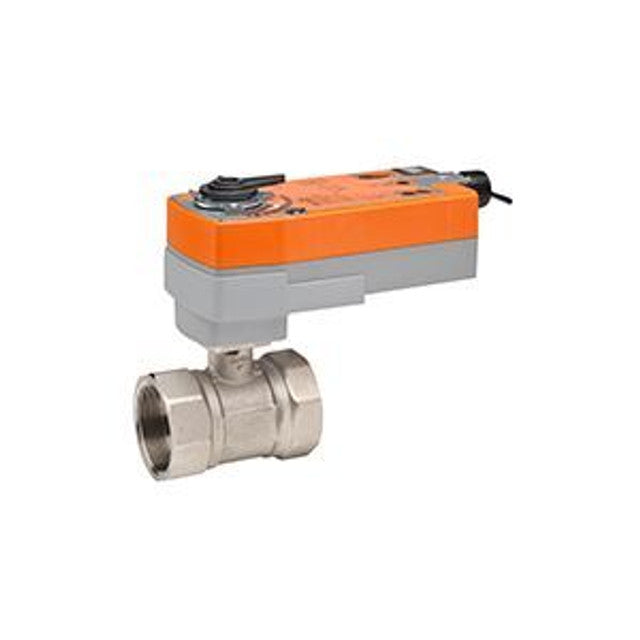

Belimo B277+AFRB24 CCV Assembly 2 Way 3 in NPT 70 Cv

Product Description

The Belimo B277+AFRB24 is a control valve designed for HVAC applications. It is a two-way valve with a three-inch NPT connection and a 70 Cv flow coefficient. This valve is constructed using nickel-plated brass and features a stainless steel ball and stem for durability and reliability in operation. The actuator operates on 24 VAC/DC with a spring return mechanism, making it an ideal choice for on/off control scenarios.

• Two-way valve design for varied applications
• Spring return actuator for reliable performance
• Constructed with durable materials for longevity

Product Highlights

This valve is suitable for chilled or hot water systems, able to handle fluids with up to 60% glycol. It operates with a pressure-independent setup and offers a 90-degree angle of rotation. Designed for easy installation and maintenance.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B277+AFRB24

Technical Specifications

• Cv: 70
• Valve Size: 3 inches
• Fluid: Chilled or hot water up to 60% glycol
• Angle of Rotation: 90 degrees
• Control Type: On/Off
• Manual Override: 5 mm hex crank included
• Power Consumption: 5 W running, 2.5 W holding
• Voltage: AC/DC 24 V
