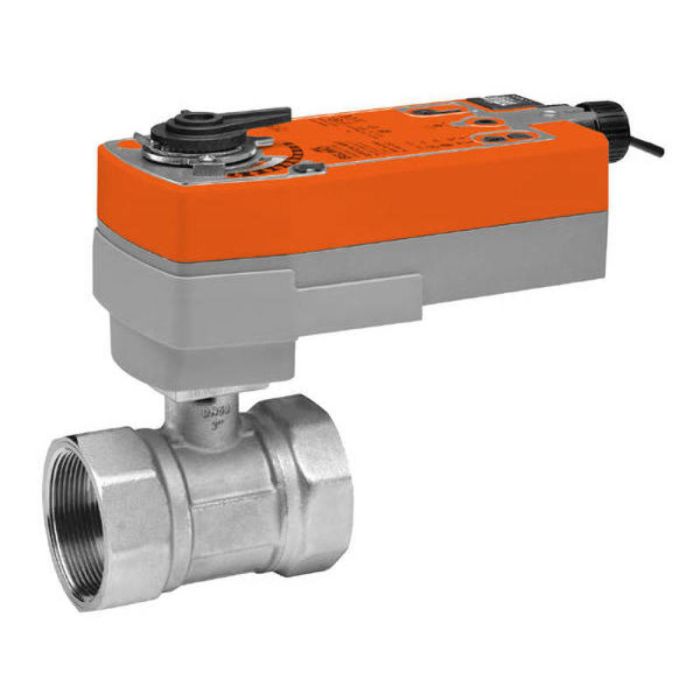

Belimo B263+AFRB24 CCV Assembly 2 Way 2.5 in NPT

Product Description

The Belimo B263+AFRB24 is a characterized control valve designed for effective management of water flow in HVAC systems. This two-way valve is made with a forged brass and nickel plated brass body and features a stainless steel ball and stem, ensuring durability and reliability. It operates on a direct coupled actuator with a capacity of 110 Cv, suitable for both on/off and spring return applications using 24 VAC/DC power.

• Valve suitable for air handling units and fan coil heating or cooling coils.
• Designed for use in hydronic systems with variable flow.
• Ball valve design minimizes leakage and ensures self-cleaning.

Product Highlights

This valve is ideal for chilled and hot water applications, rated for temperatures up to 250 degrees Fahrenheit. Its robust construction and reliable actuator maximize system efficiency and performance.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B263+AFRB24

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 5 W Running, 2.5 W Holding
• Close-Off Pressure: 100 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Appliance Cable With 1/2 in. Conduit Connector
• Valve Size: 2.5 inches (65 mm)
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
