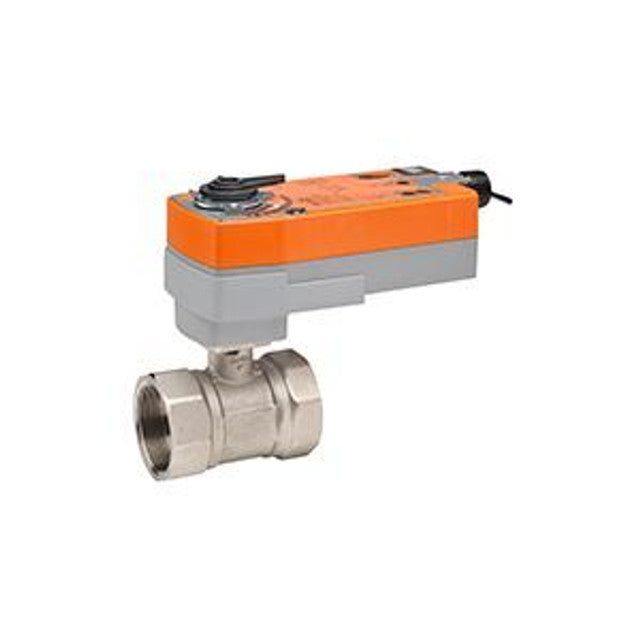

Belimo B262+AFRX24-MFT-S CCV Assembly 2 Way 2 1/2 in NPT 75 Cv

Product Description

The Belimo B262+AFRX24-MFT-S is a characterized control valve designed for use in HVAC applications. This valve is commonly utilized in air handling units and fan coil units. It features a two-way design with a two and a half inch National Pipe Thread connection and a flow capacity of seventy-five cubic feet per minute. The unit operates on twenty-four volts alternating current with modulating functionality for precise control.

• Two-way valve suitable for heating and cooling applications.
• Built with forged brass and a stainless steel ball and stem.
• Handles fluid temperatures up to two hundred fifty degrees Fahrenheit.

Product Highlights

The Belimo B262+AFRX24-MFT-S provides reliable performance in chilled or hot water systems with variable flow. It is equipped with a direct coupled actuator that features a spring return design, ensuring prompt response and reliable operation.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B262+AFRX24-MFT-S

Technical Specifications

• Valve Size: 2.5 inches
• Cv: 75
• Close-Off Pressure: 100 psi
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 7.5 W running, 3 W holding
• Operating Conditions: -22°F to 122°F
• Fluid: Chilled or hot water up to 60% glycol
• Control Type: Multi-Function Technology
