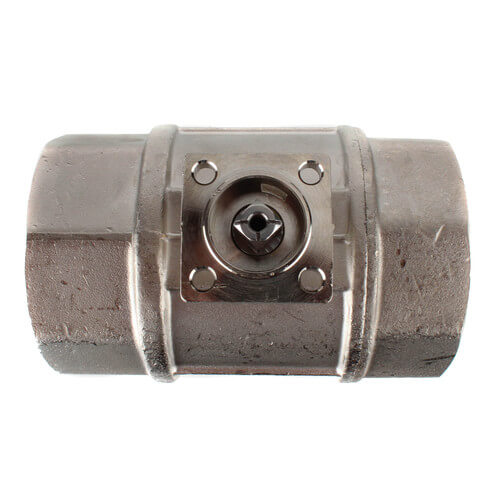

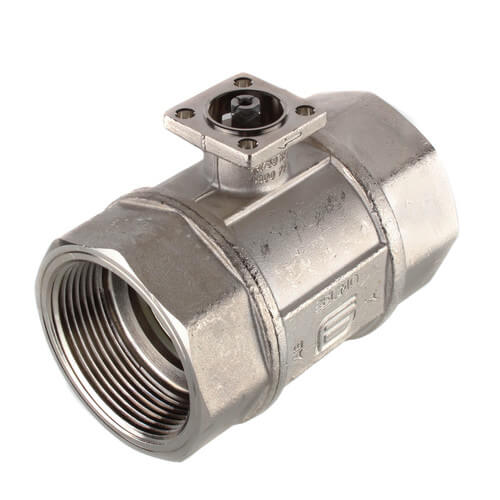

Belimo B261 Characterized Control Valve CCV 2.5 inches 2-Way Stainless Steel Trim 60Cv

Product Description

The Belimo B261 Characterized Control Valve (CCV) excels in regulating flow within hydronic systems, offering a controlled opening and optimized energy consumption. Its unique design features a stainless-steel disc that provides an equal percentage characteristic similar to globe valves for consistent performance.

• Optimized for use in air handling units.
• Equipped with a stainless-steel trim for maximum durability.
• Supports a flow capacity of 60 Cv.

Product Highlights

Common applications include heating or cooling coils in fan coil units, air handling units, VAV box reheat coils, and bypass loops. Well-suited for both chilled and hot water systems up to 60% glycol concentration.

Product Information

Standard Information

• Brand: Belimo
• MPN: B261

Technical Specifications

• Size: 2.5 inches
• Valve Type: 2-Way
• Pattern: 2-Way
• Pressure Independence: No
• Trim: Stainless Steel
• End Fitting: Internal Thread
• Fluid Compatibility: Chilled or Hot Water up to 60% Glycol
• Controllable Flow Range: 75B0
