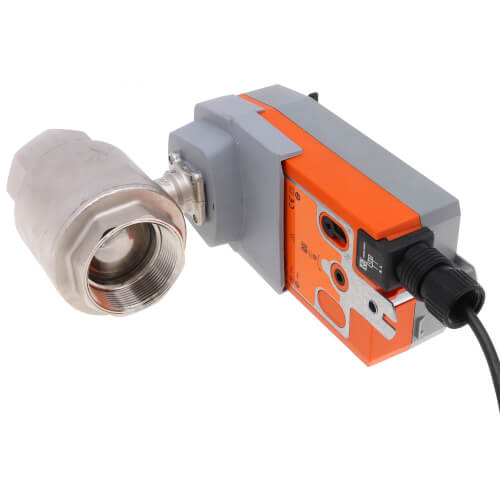

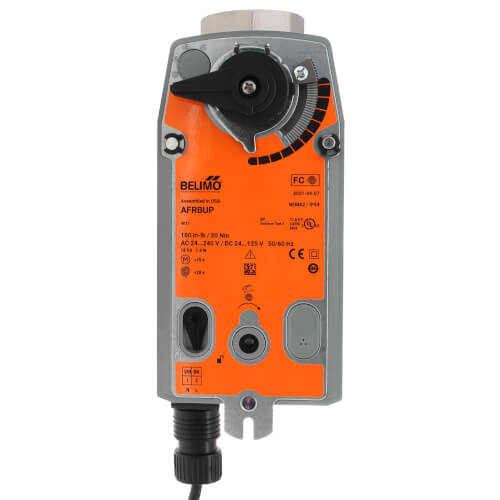

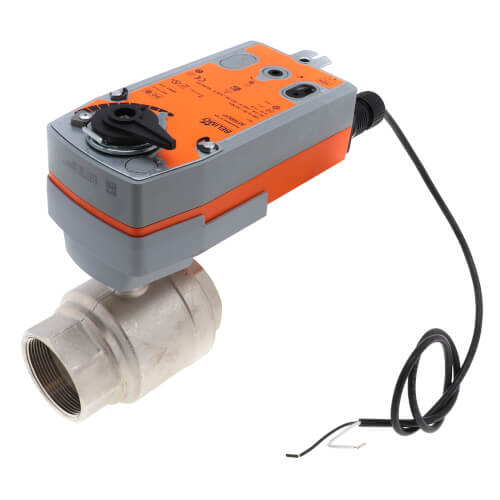

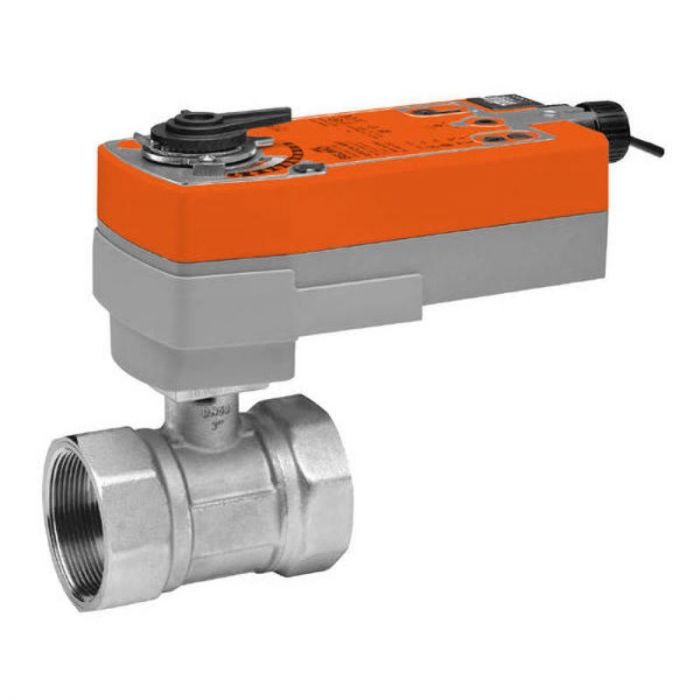

Belimo B254+AFRBUP Butterfly Valve Actuator High Performance Low Noise 2 Inch 240 Cv Spring Return 24-240V On/Off

Product Description

The Belimo B254+AFRBUP actuator exemplifies reliability and high performance in HVAC applications. Designed for butterfly valves, this model features a spring return mechanism and is engineered to operate with low noise and high efficiency. Ideal for use in both commercial and industrial settings, the actuator can handle a wide range of applications, enhancing system reliability and operational stability.

• Spring-return functionality ensures reliable operation and safety.
• Corrosion-resistant construction for a long service life.
• Manual override and built-in positioner for enhanced control.

Product Highlights

Rated for up to 250Nm torque, this actuator is capable of controlling dampers and valves effectively. It operates with a voltage range from 24 to 240V and offers an On/Off control type.

Product Information

Standard Information

• Brand: Belimo
• MPN: B254+AFRBUP

Technical Specifications

• Control Type: 2-way, On/Off
• Operating Voltage: 24-240V
• Flow Capacity (Cv): 240
• Operation: 90-degree rotation, spring return
• Material: Stainless Steel (ball and stem)
• Torque: 180 lb-in
• Body Pressure Rating: 400 psi
• Close Off Pressure: 100 psi
