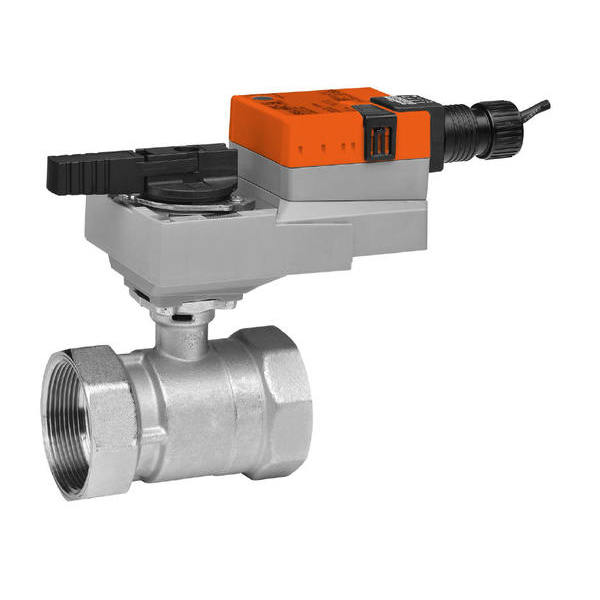

Belimo B254+ARX24-MFT CCV Assembly 2 Way 2 in NPT 240 Cv

Product Description

The Belimo B254+ARX24-MFT is a characteristically designed control valve used in HVAC applications. This two-way control valve measures two inches with a flow coefficient of two hundred forty. It features a direct coupled actuator and operates on twenty-four volts AC. Built from forged brass and fitted with a stainless steel ball and stem, it ensures reliability in varied conditions.

• Suitable for chilled and hot water usage, up to sixty percent glycol.
• Self-cleaning ball valve design with zero leakage.
• Operates effectively in air handling units or fan coil units.

Product Highlights

This valve is ideal for hydronic systems requiring variable flow and offers MFT (Multi-Function Technology), making it versatile for different HVAC needs.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B254+ARX24-MFT

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: Chilled, hot water, up to 60% glycol
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 18 GA Plenum Rated Cable with 1/2 in. Conduit Connector
• Power Consumption: 3.5 W Running, 1.3 W Holding
• Angle of Rotation: 90 degrees
