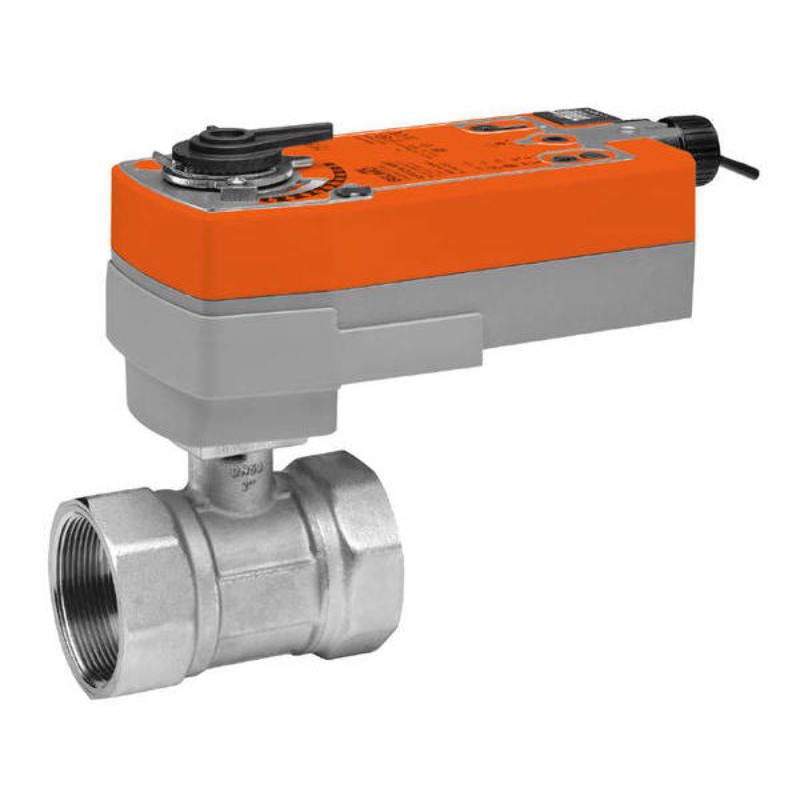

Belimo B254+AFRB24-S CCV Assembly 2 Way 2 in NPT 240 Cv

Product Description

The Belimo B254+AFRB24-S is a characterized control valve designed for heating and cooling systems. This 2-way valve features a forged brass body with a nickel-plated finish, stainless steel ball and stem, and a direct coupled actuator. It operates at a torque of 180 in-lb and can effectively manage the flow in hydronic systems. The valve is rated for water temperatures up to two hundred fifty degrees Fahrenheit, making it suitable for a wide range of applications.

• Used in air handling units and fan coil units
• Zero leakage ball valve design
• Equipped with a spring return actuator

Product Highlights

This valve provides reliable performance in both heating and cooling applications, ensuring optimal control of water flow.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B254+AFRB24-S

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled, Hot Water, Up To 60% Glycol
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 5 W Running, 2.5 W Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: Two 3 ft. 18 GA Appliance Cables With 1/2 in. Conduit Connectors
